MACHINING PROJECTS
A collection of various metal machining and CNC projects.
Golden Tickets
Brass
2D CNC engraving

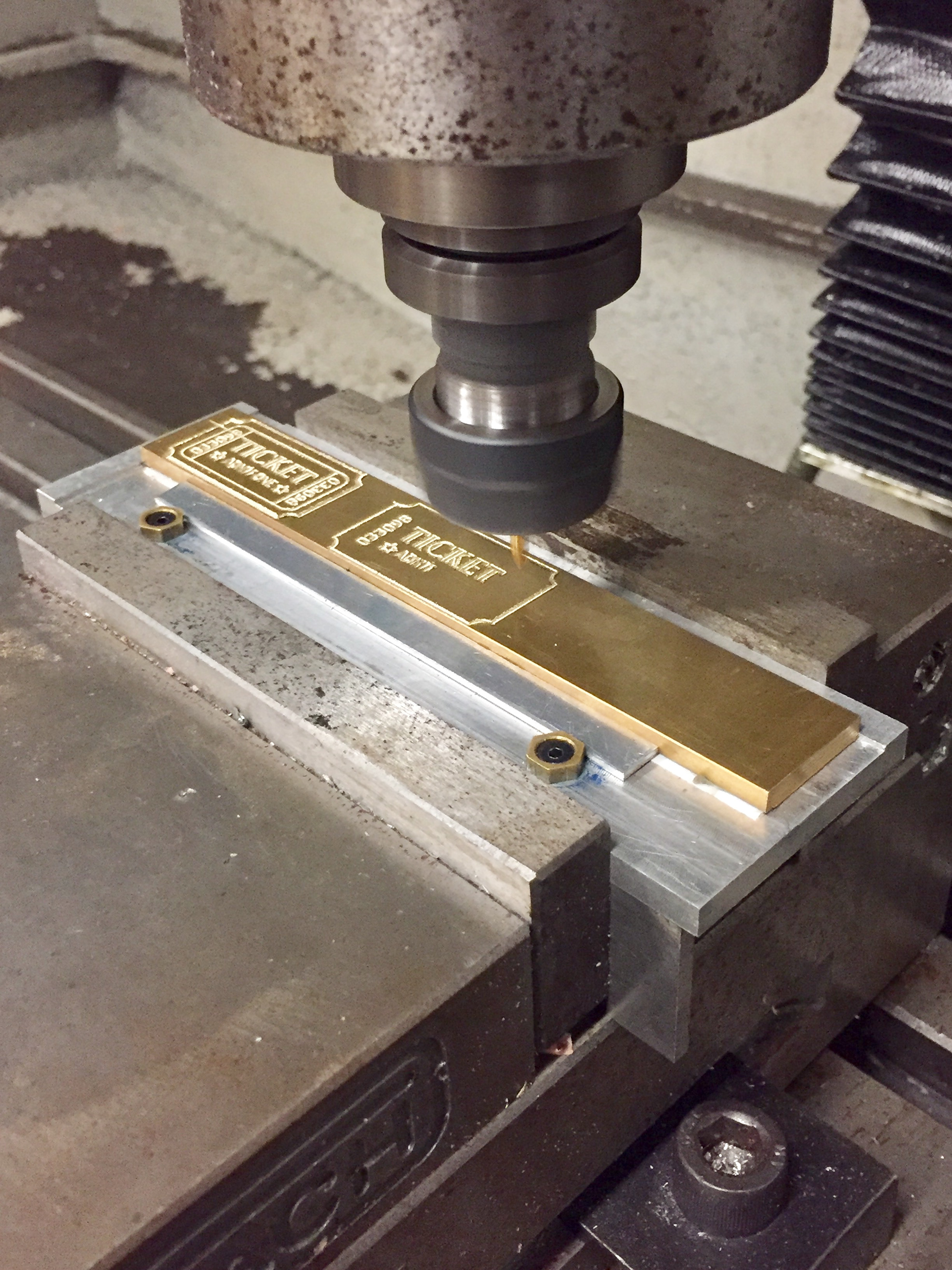

3 tickets were engraved on one piece of brass stock
3 tickets were engraved on one piece of brass stock
Patina was used to darken the engraved lines. I also soldered one into a keychain.
Patina was used to darken the engraved lines. I also soldered one into a keychain.
Maze Game
Aluminum, acrylic, steel balls
2.5D CNC milling
An acrylic lid was laser cut and attached to the aluminum base with drill and taps.
An acrylic lid was laser cut and attached to the aluminum base with drill and taps.
'Lil Bundt Cake
Aluminum
3D CNC milling
A 2"x2" positive form to be used for a mold
A 2"x2" positive form to be used for a mold

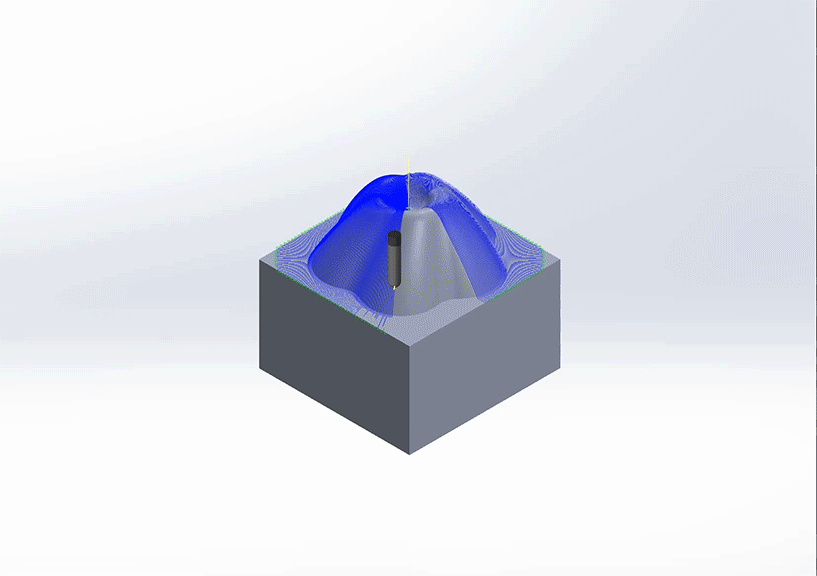

An adaptive cut and a radial cut was used to create the finish.
An adaptive cut and a radial cut was used to create the finish.
Rocket and Clouds
Aluminum
3D CNC milling with one flip
Started from 2"x2"x6" aluminum stock
Started from 2"x2"x6" aluminum stock
A parallel toolpath was used to create the final finish.
A parallel toolpath was used to create the final finish.

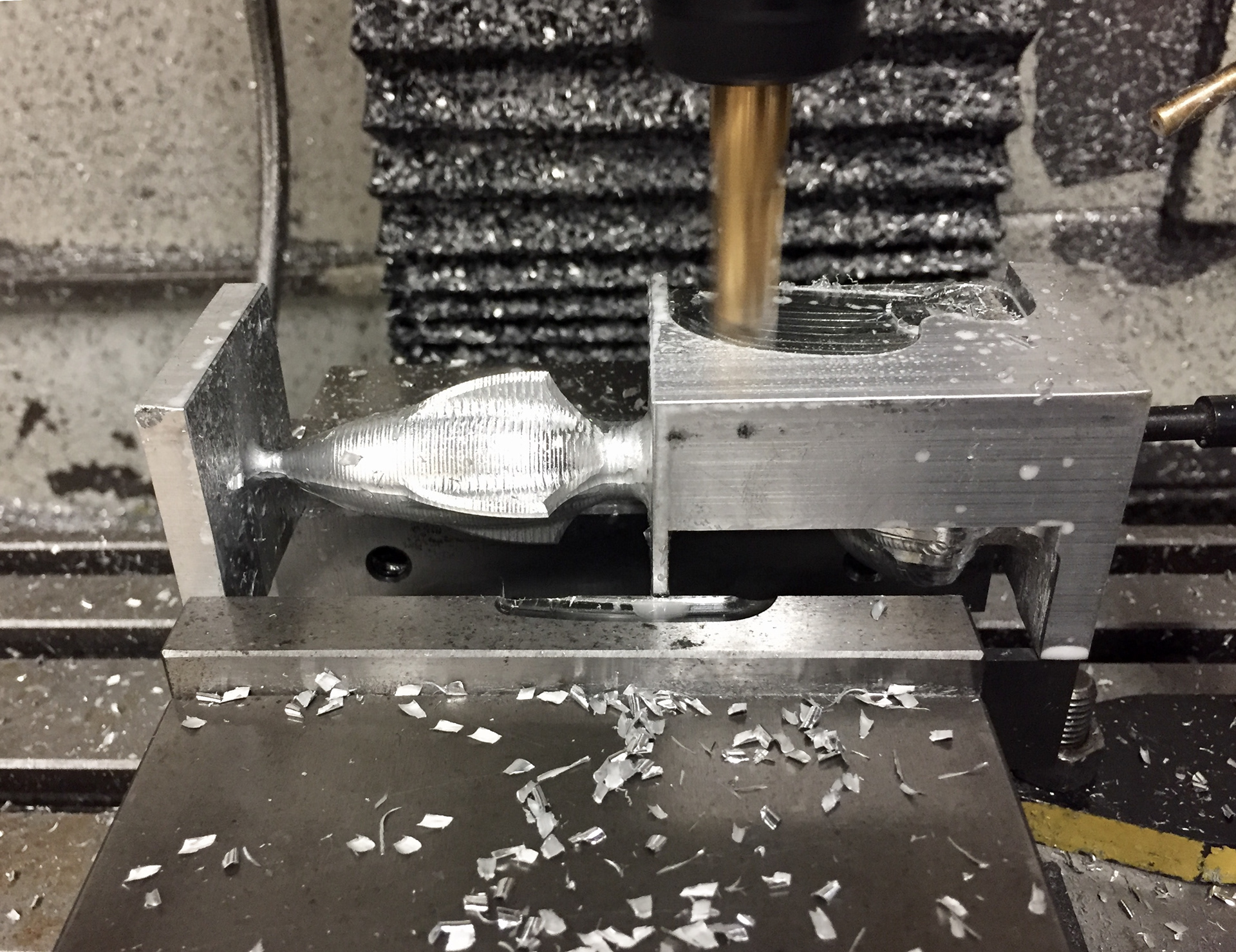

Stock had to be left in the middle in order to hold in vice.
Stock had to be left in the middle in order to hold in vice.

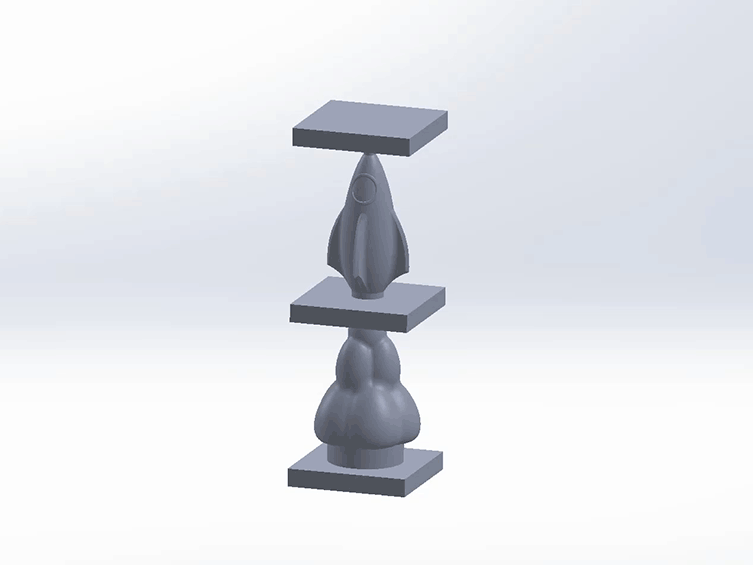

Solidworks model of rocket & clouds.
Solidworks model of rocket & clouds.

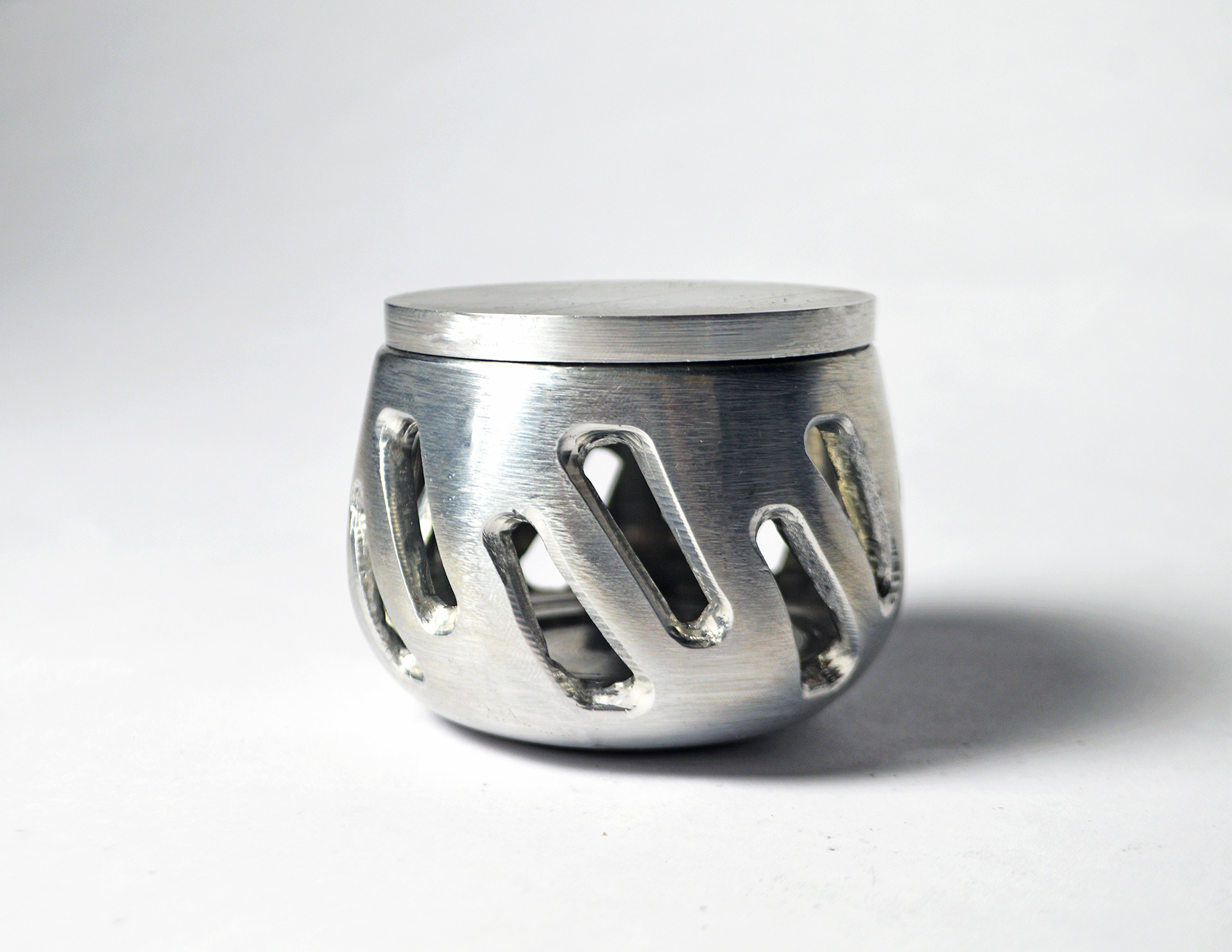

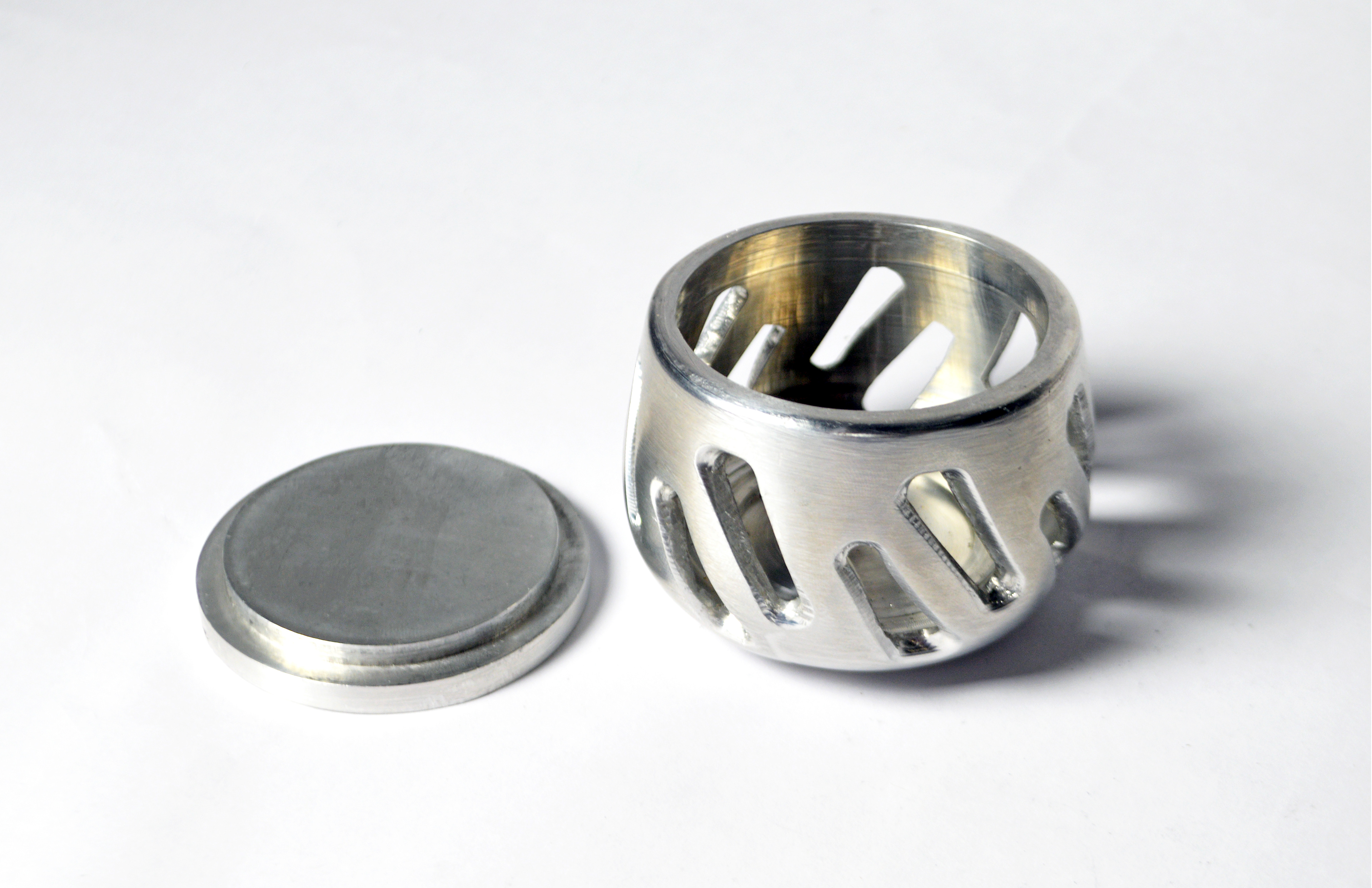

Candle Holder

3D CNC milling with multiple flips

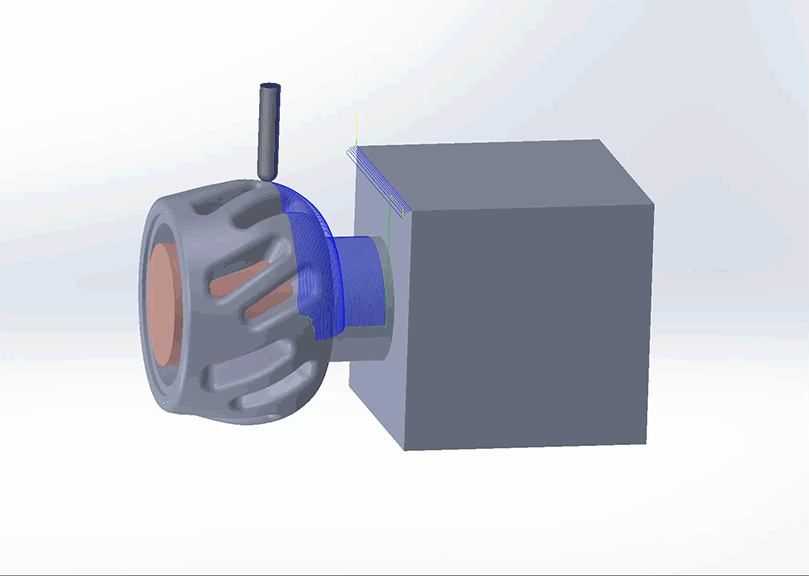

2 adaptive and 4 parallel passes were used.
2 adaptive and 4 parallel passes were used.

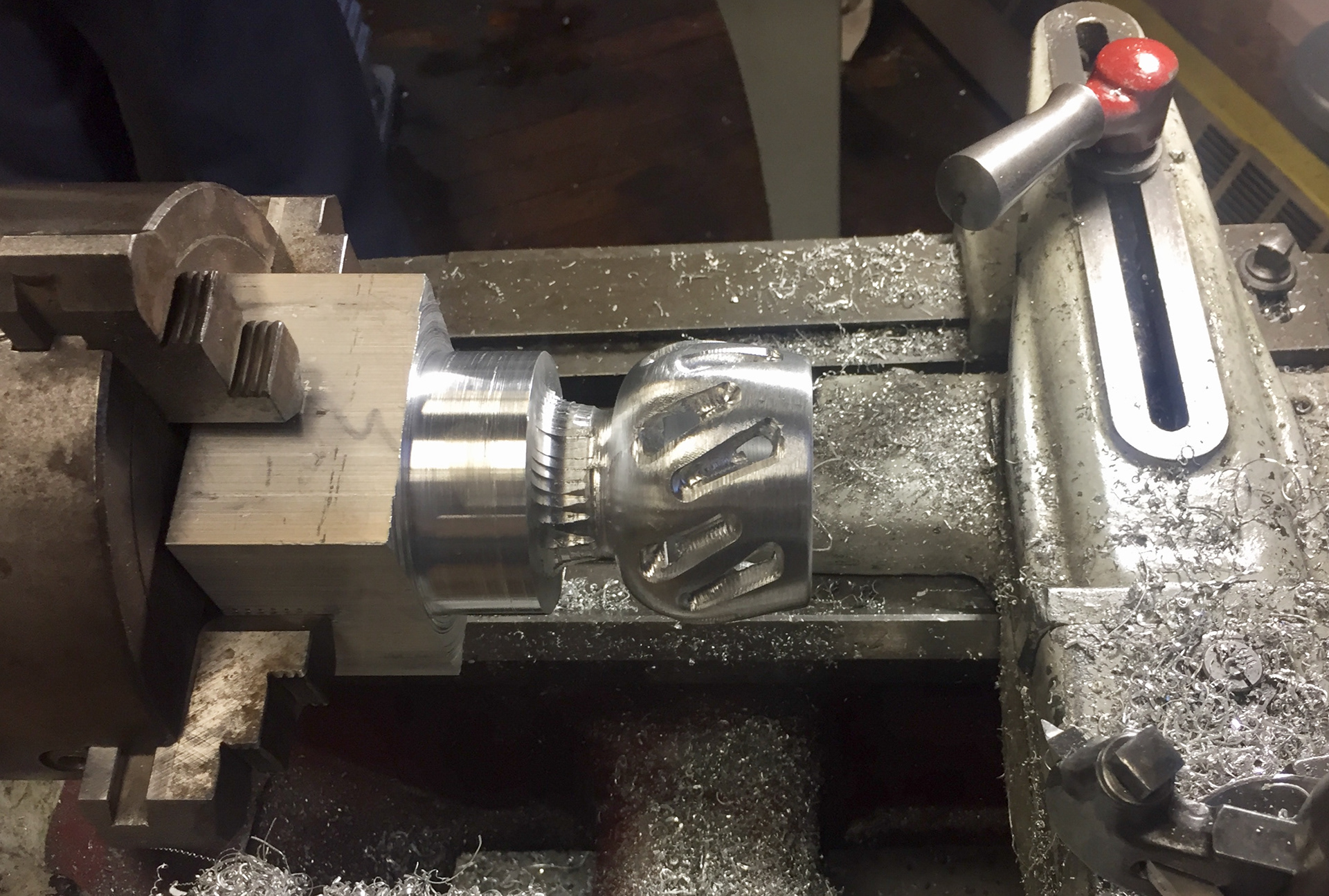

Finished on lathe by boring a 10° beveled hole, filing and parting.
Finished on lathe by boring a 10° beveled hole, filing and parting.

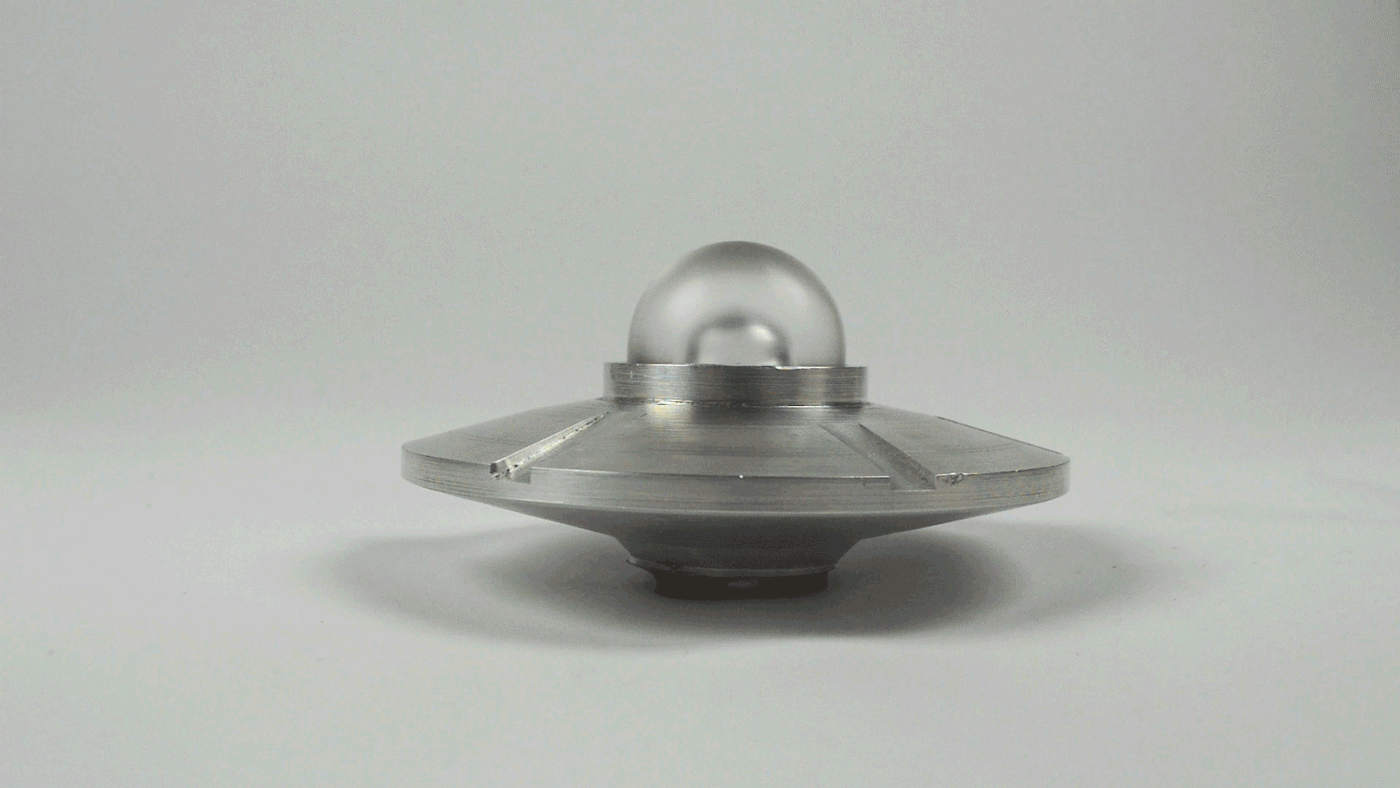

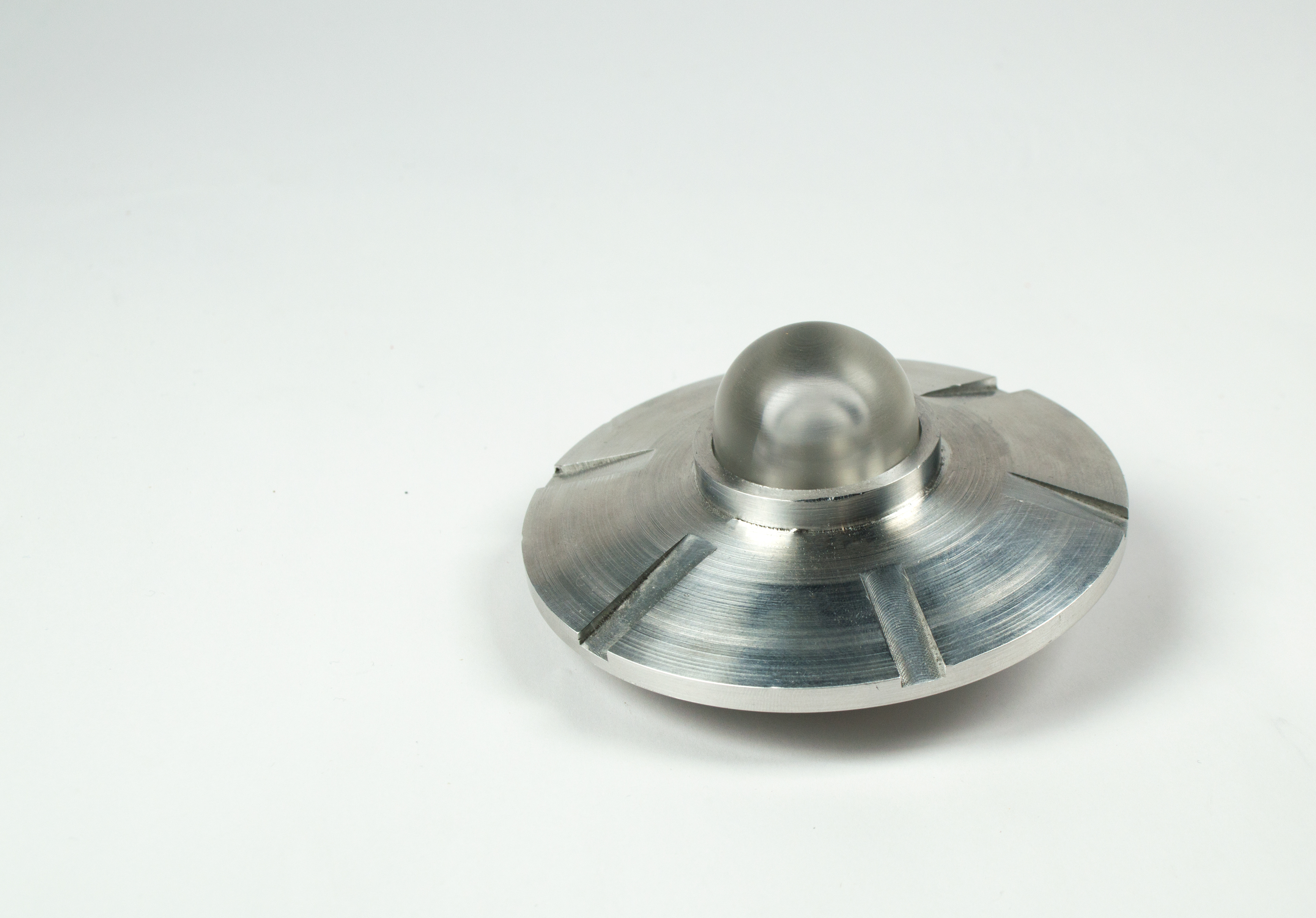

UFO Roller Toy
Aluminum, acrylic, steel balls
South Bend lathe and Bridgeport vertical mill
Othographic View
Othographic View
Exploded View
Exploded View
Mill-Max Internship
During the summer of 2018, I got the opportunity to intern at Mill-Max, an interconnect components manufacturing company in Oyster Bay, NY. I worked in the tool room along side several machinists to machine parts for manufacturing machines. Below are a few of the parts I machined.

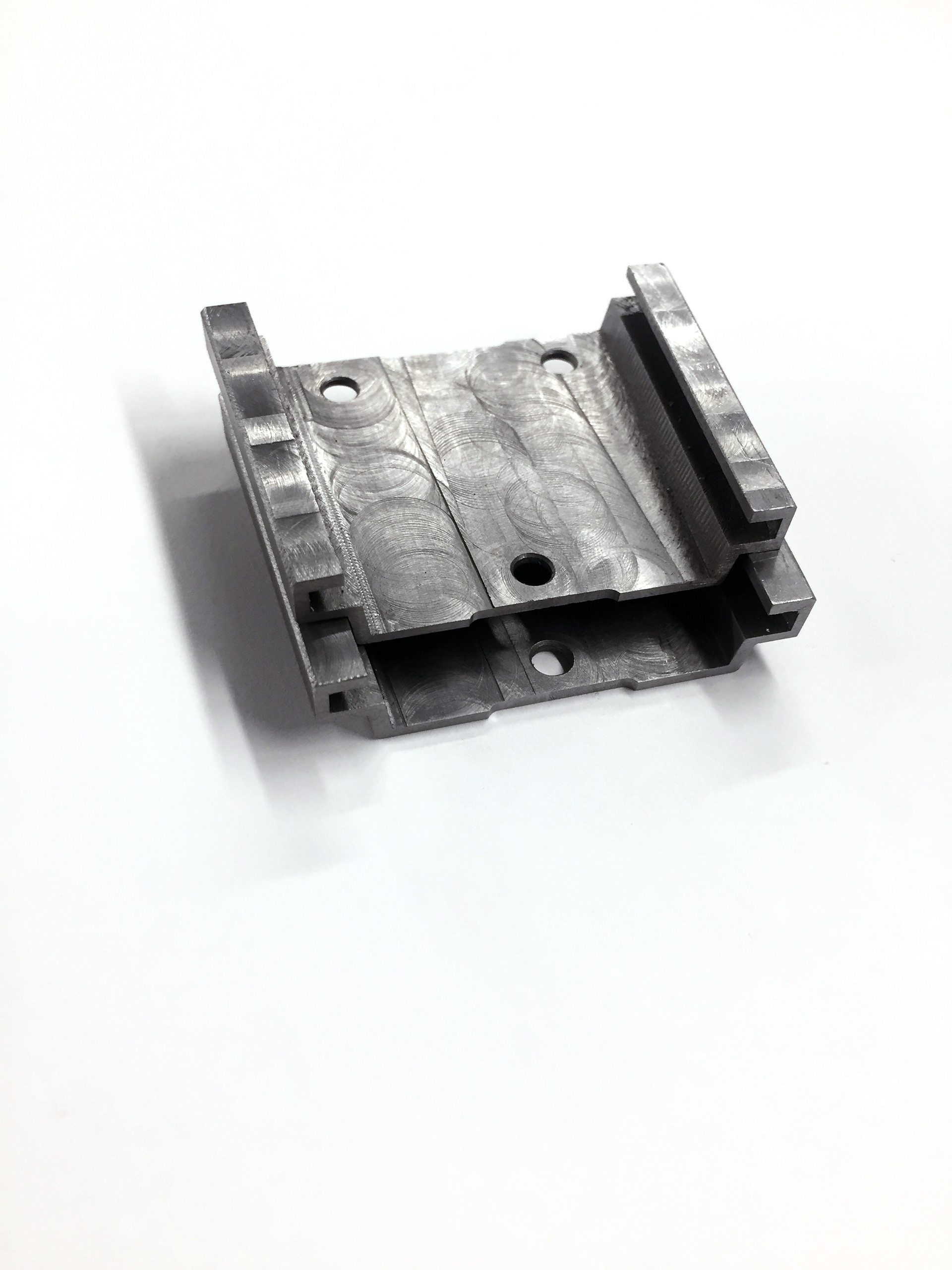

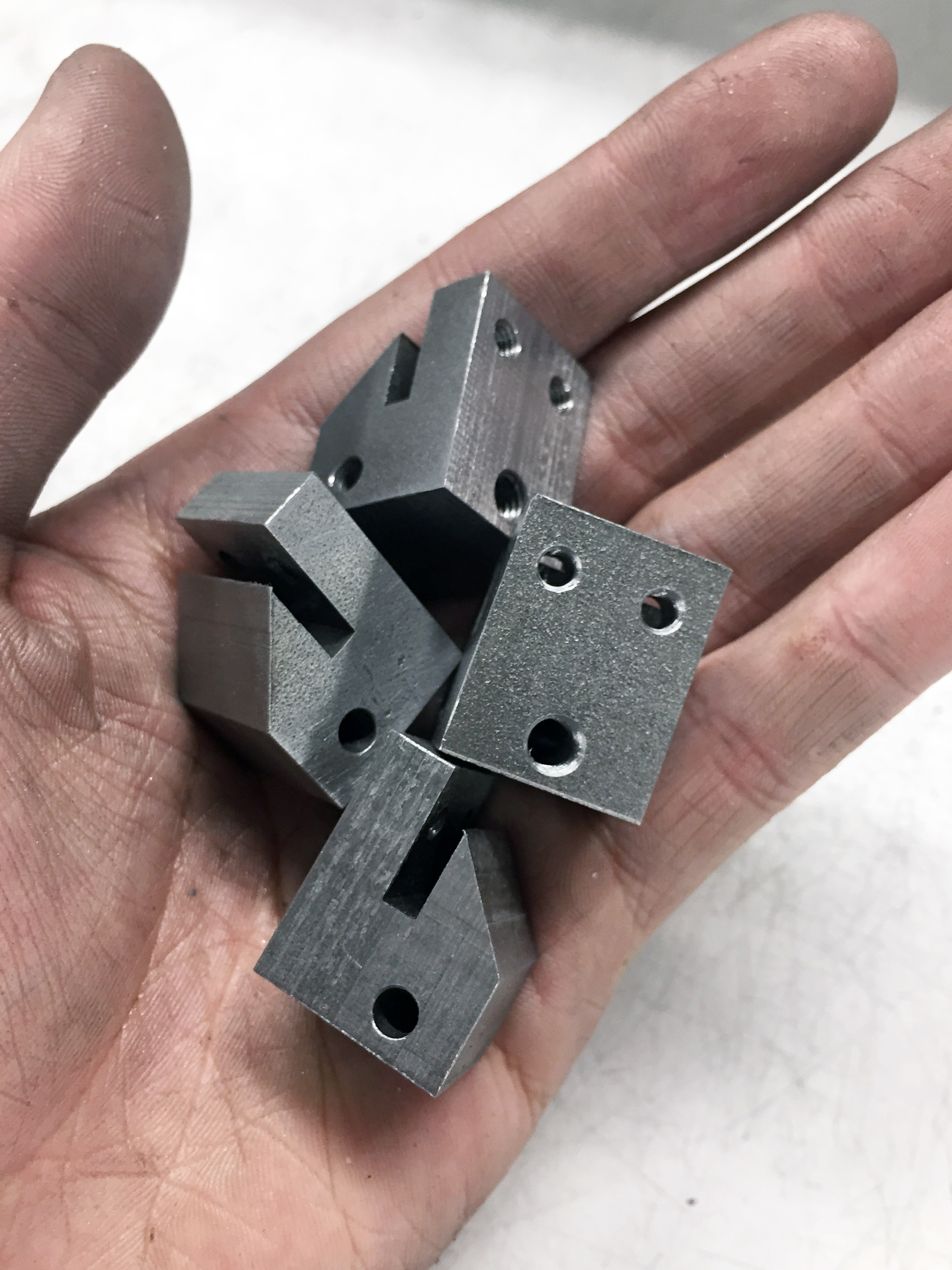

Air Jet Holder
Cold Rolled Steel

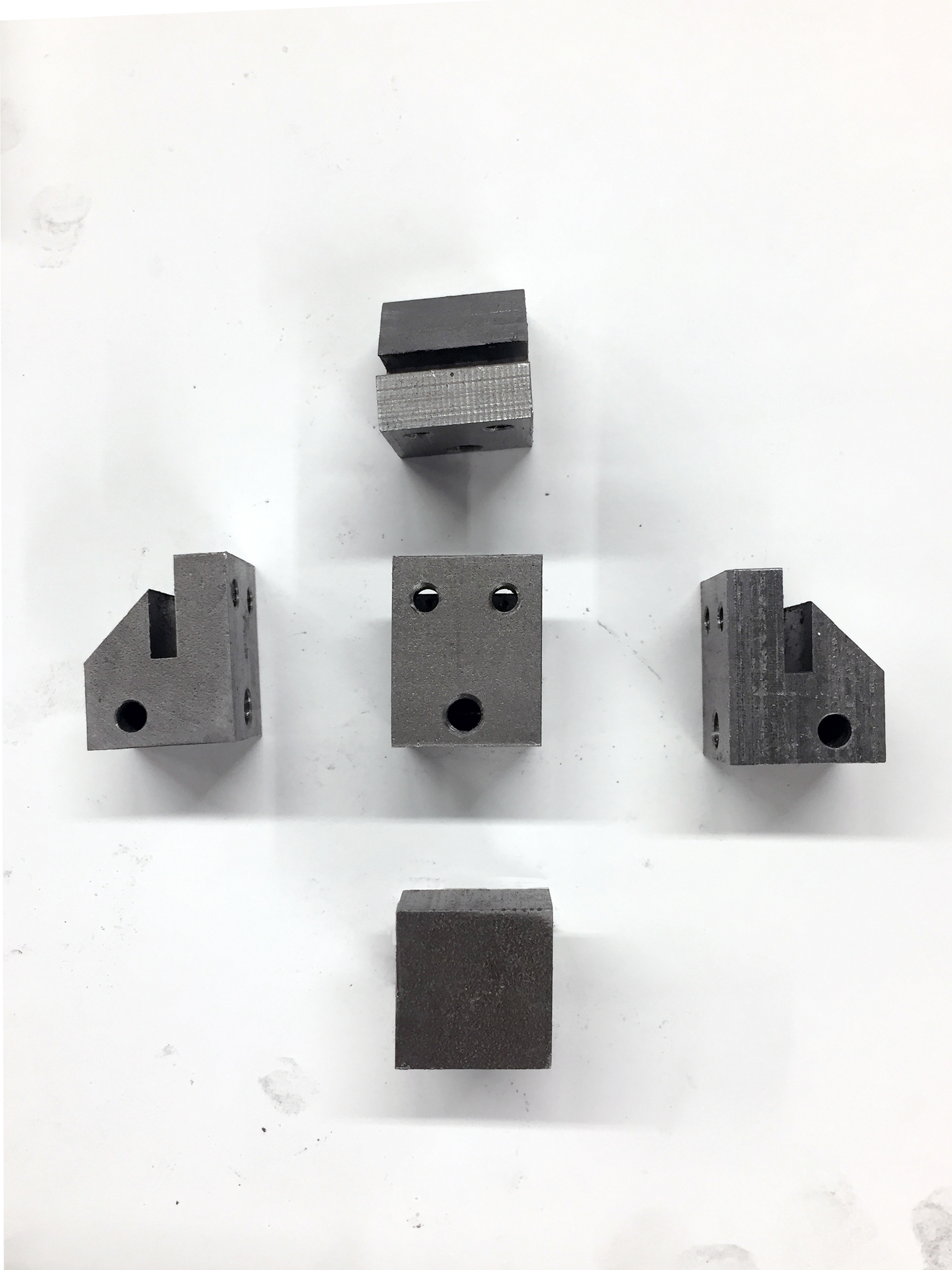

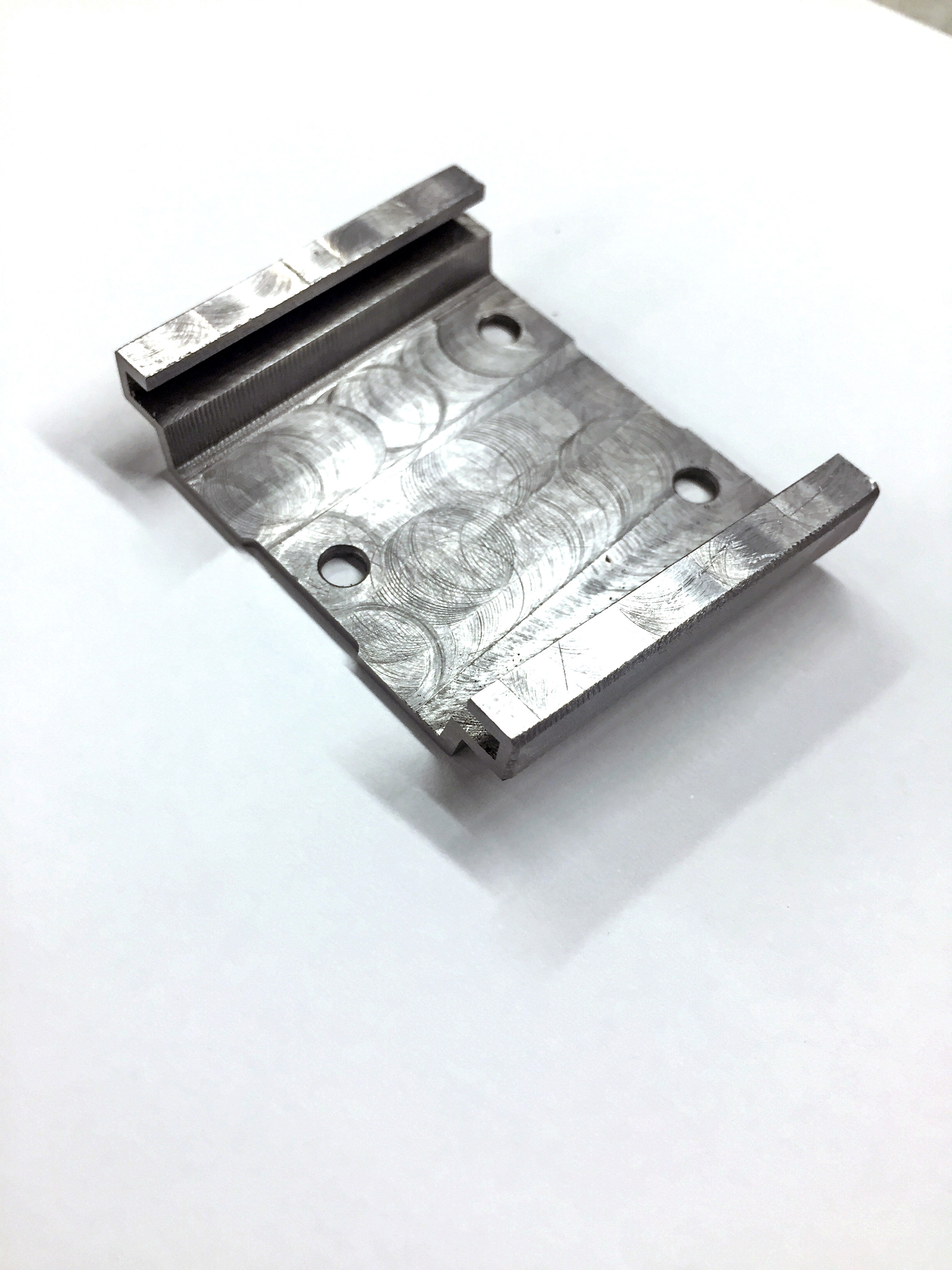

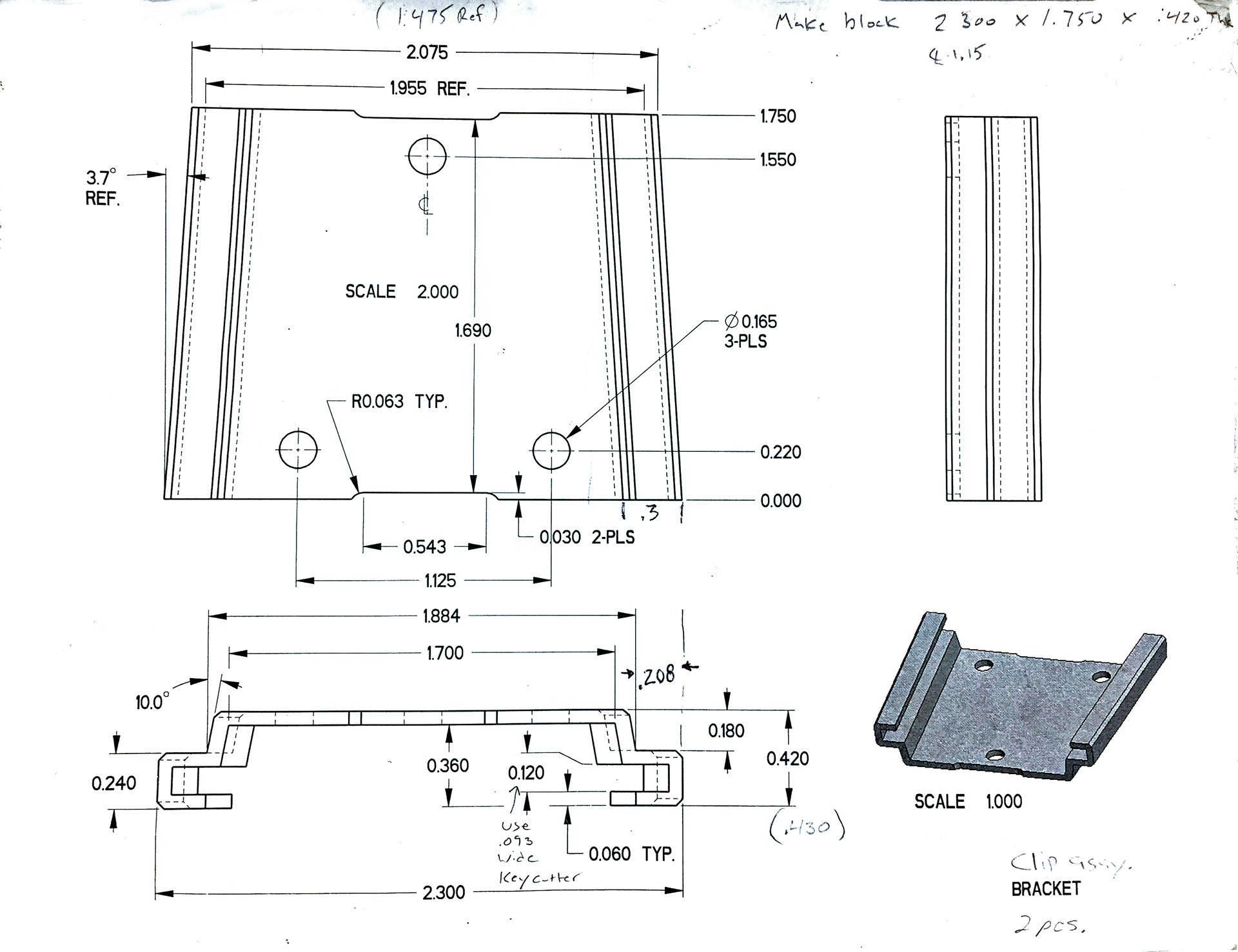

Clip Bracket
Tool Steel

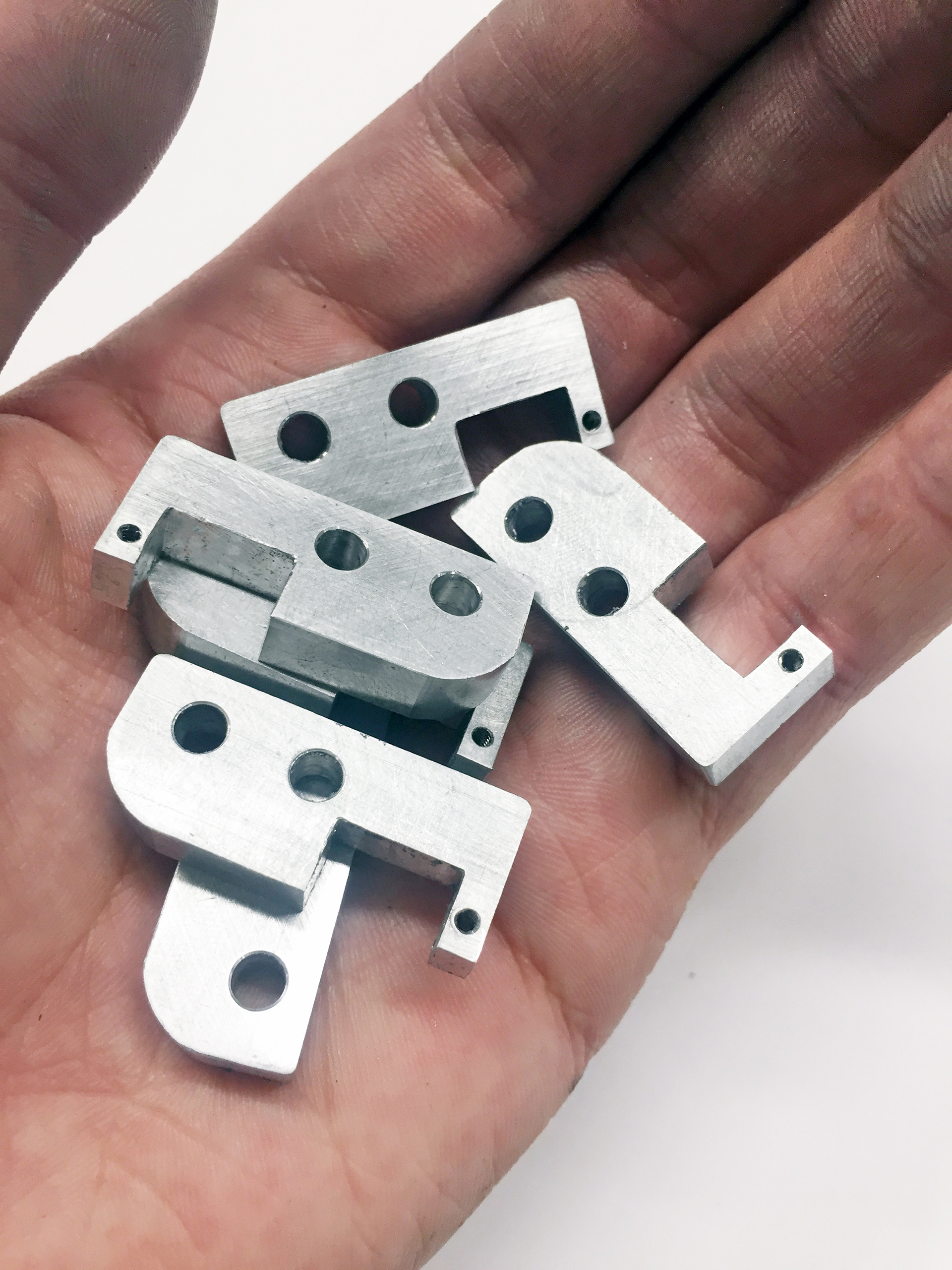

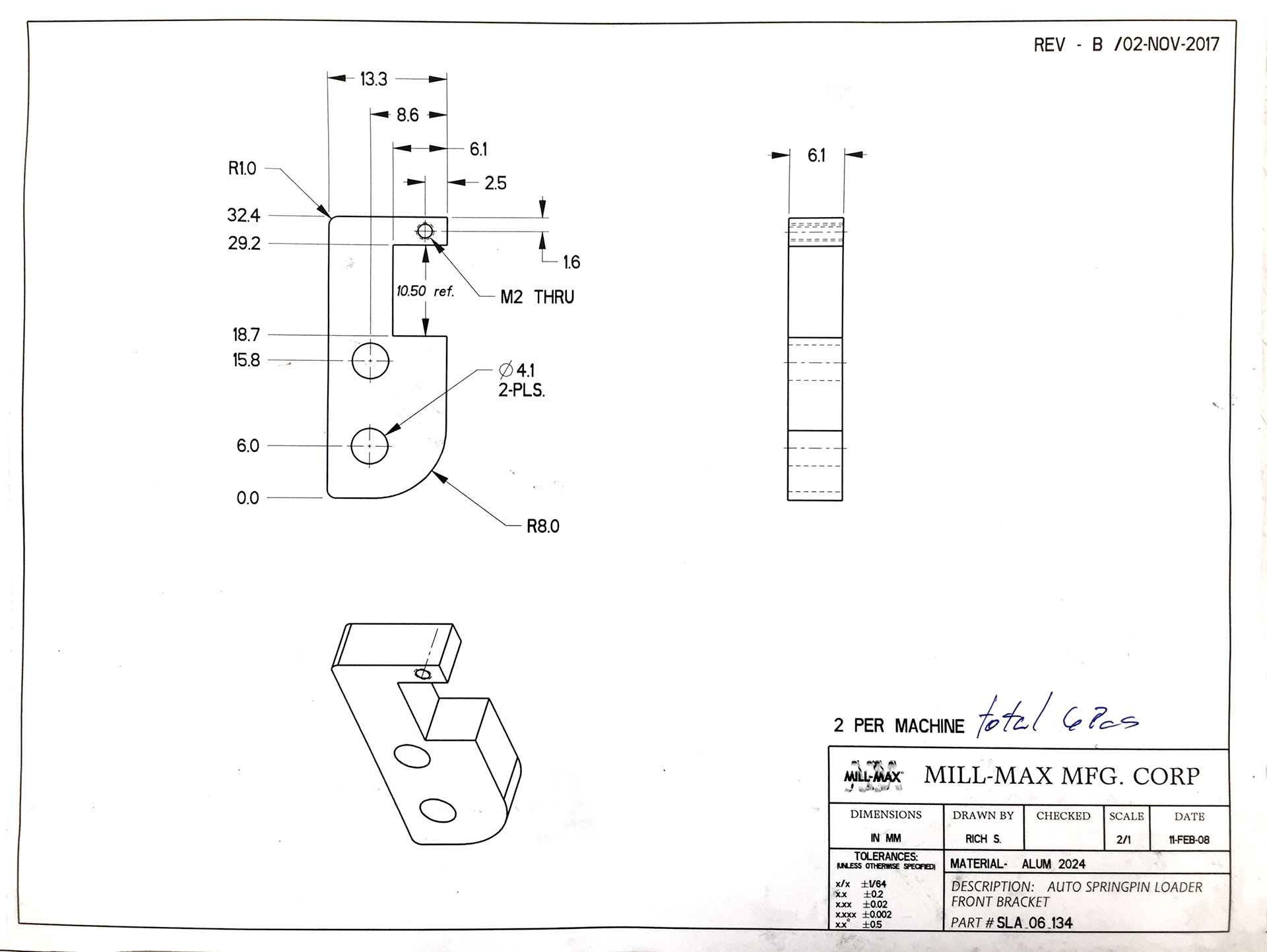

Auto Spring Pin Loader Front Bracket
Aluminum
Auto Spring-Pin Loader Side Plate Guide
Aluminum

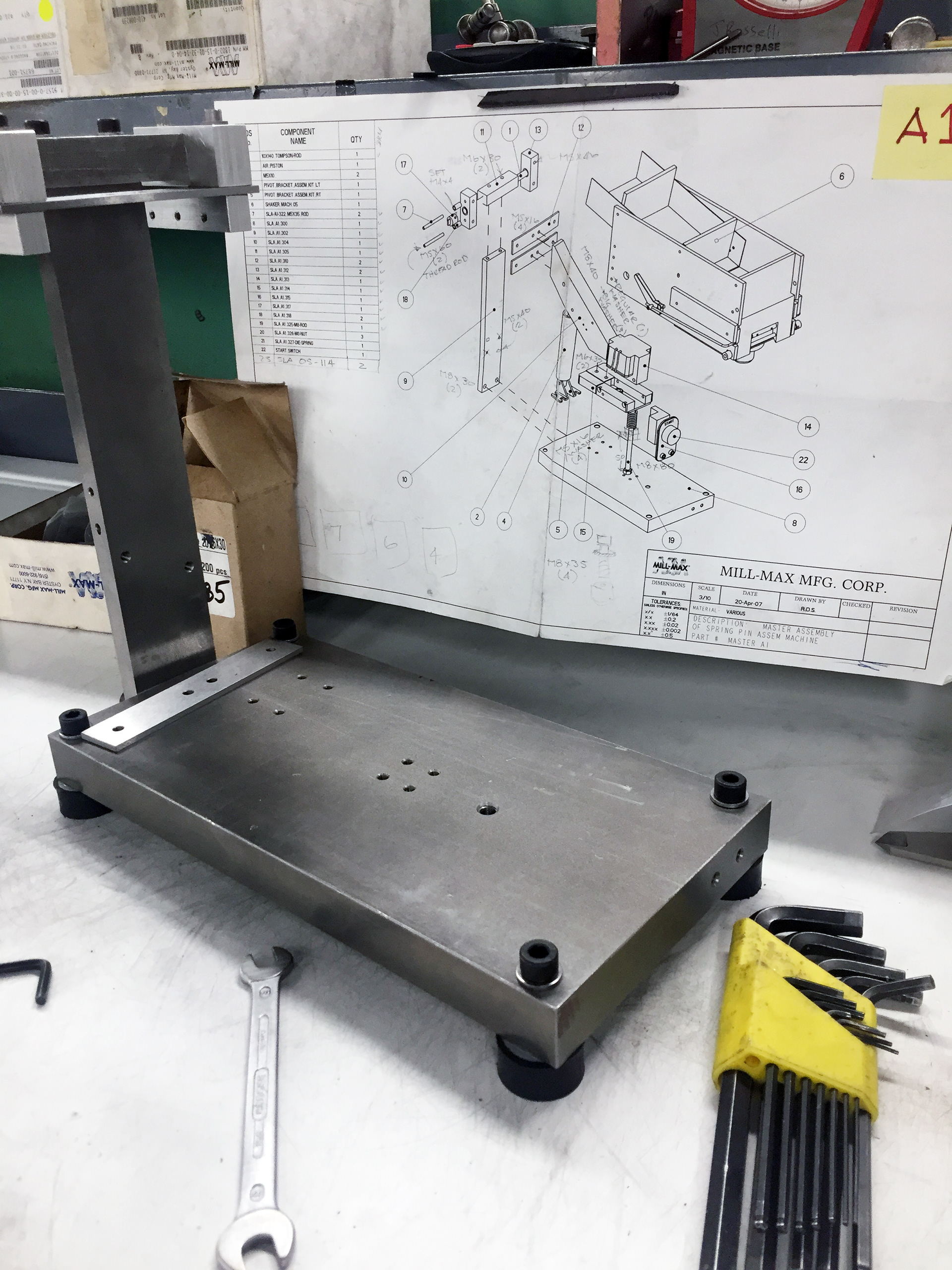

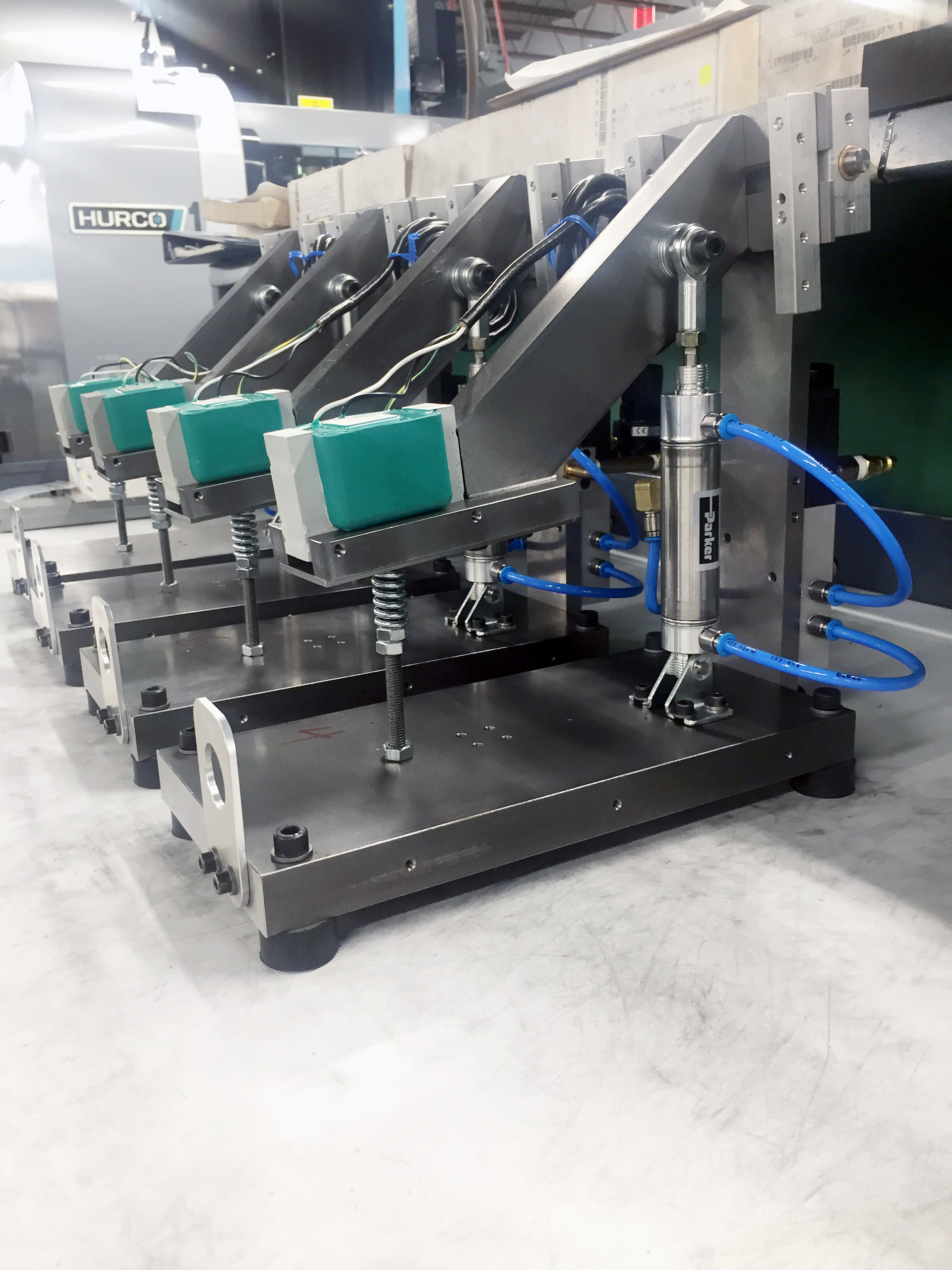

Spring Pin Assembly Machine
After we machined all the parts, I assembly them together into the final machine.
