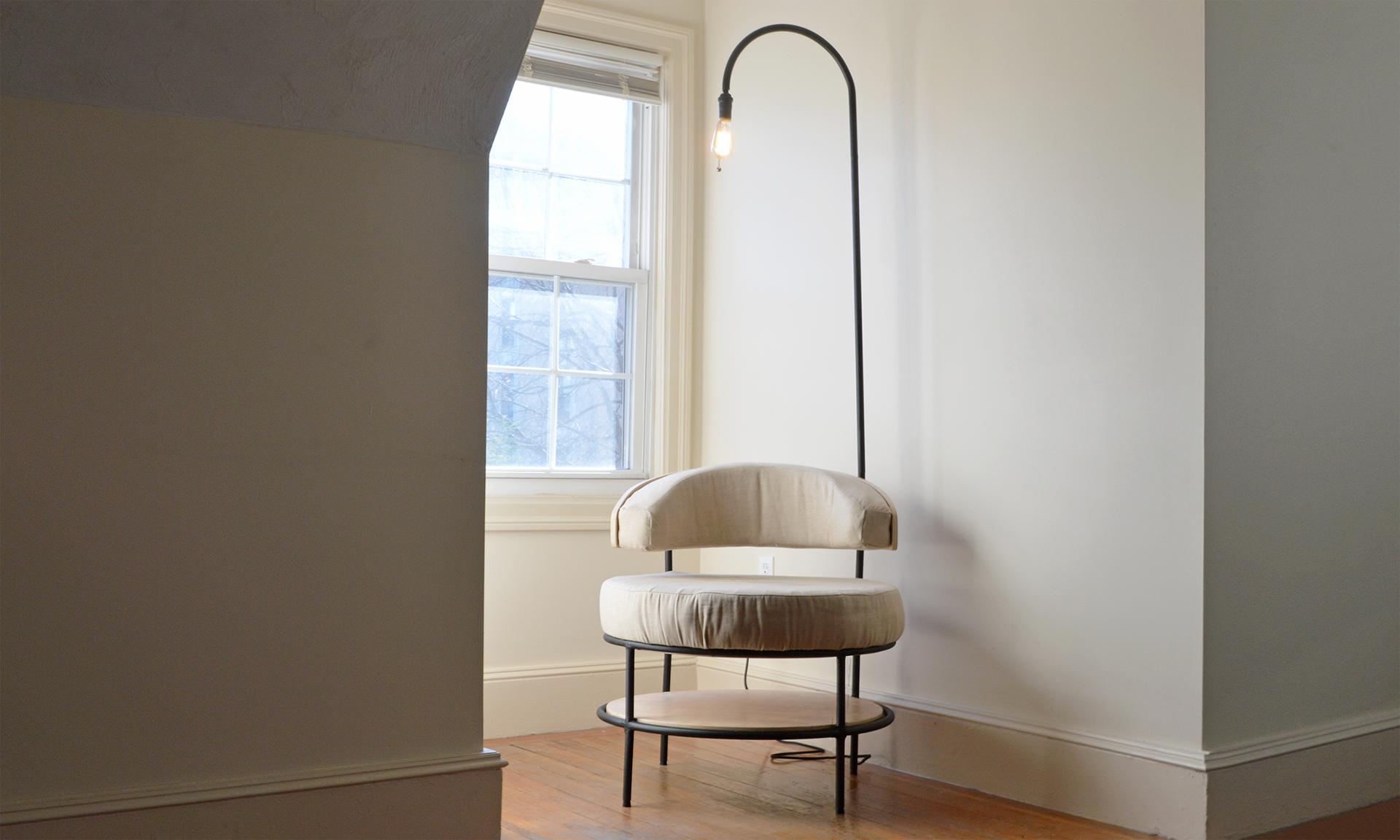

Lamppost Chair
A multi-functional reading chair for small spaces with an industrial modern, DIY aesthetic.
SCOPE
Furniture Design
Fabrication​​​​​​​
CREDITS
RISD
How can I design easy, comfortable furniture for tiny spaces?

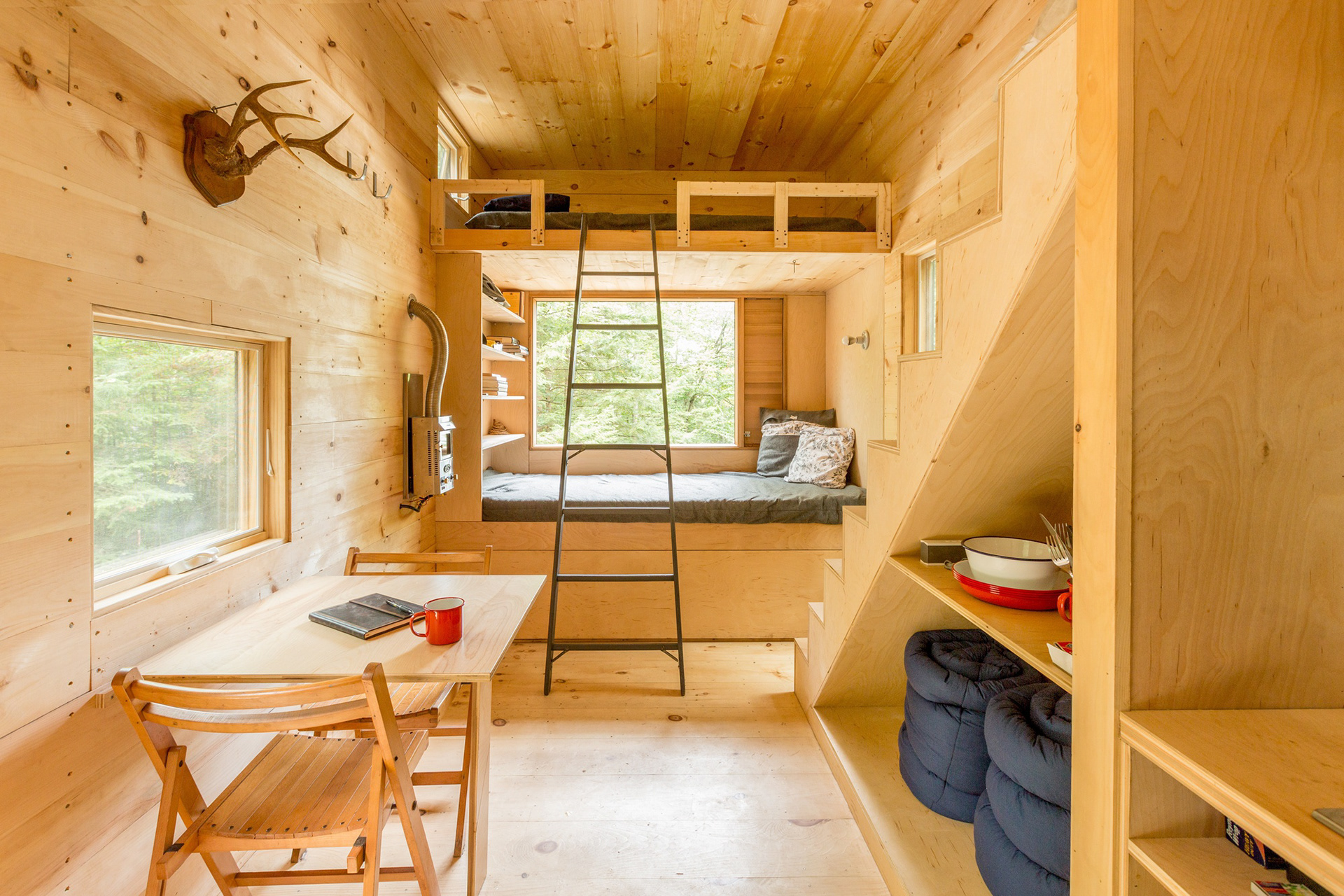

With space increasingly becoming a valuable commodity, I was interested in designing for small spaces. Tiny house and tiny living has also become trendy lately, with companies such as Getaway renting out small one room cabins for young adventurers to retreat out in the middle of the wilderness. Tiny spaces present an interesting design challenge to optimize space and function while still keeping comfort and ease.
By leveraging all the possible space there is.
The lamppost chair takes advantage of vertical space, something that is often overlooked. Often multifunctional furniture appears complex, complicated and ugly, but this chair keeps things as simple and direct as possible—bookshelf, chair and lampThe chair is also designed to be taken apart and reassembled for flexible, easy transportation, and set up in small spaces.
Shelf is screwed into tabs at bottom
Shelf is screwed into tabs at bottom

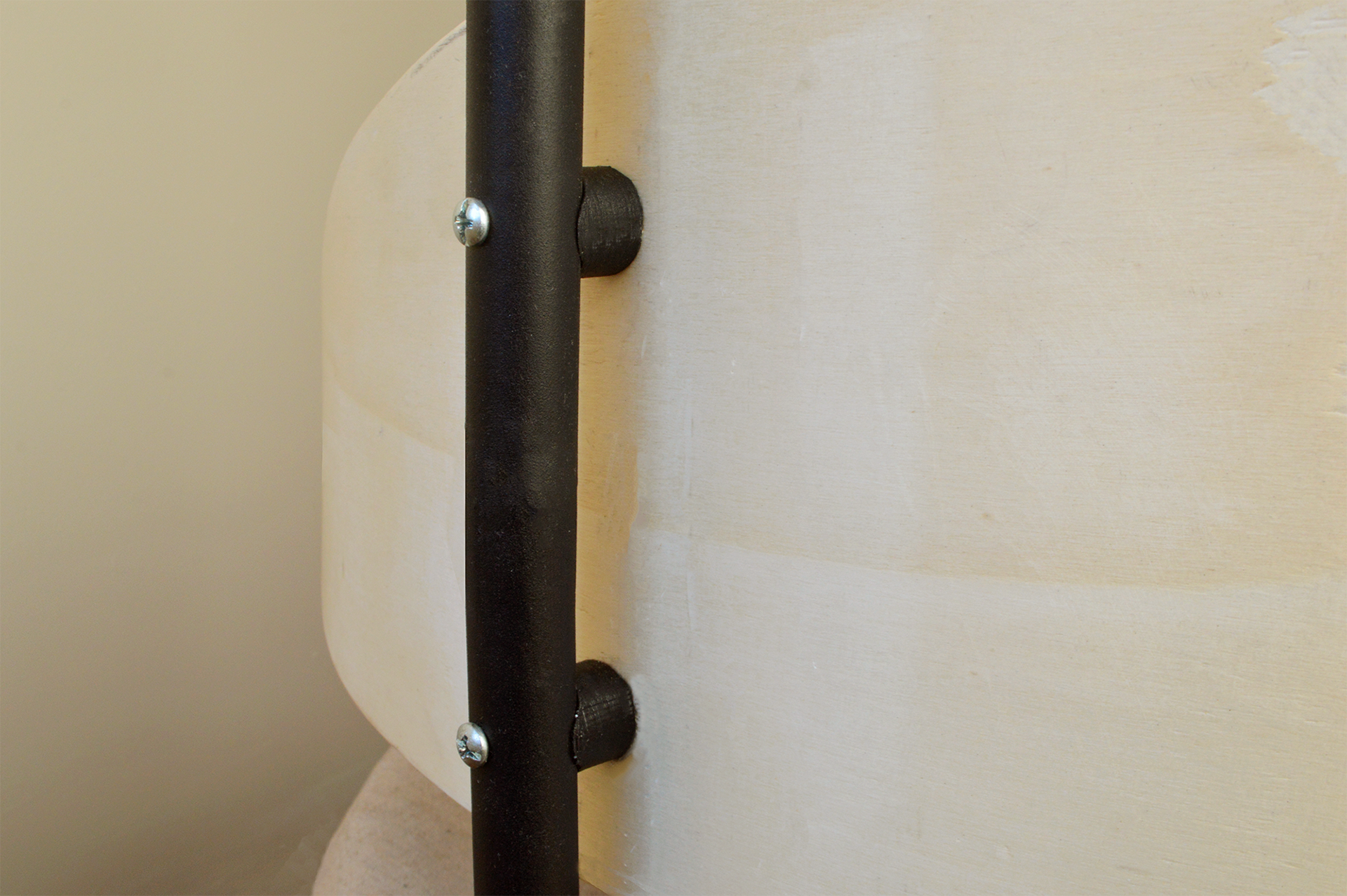

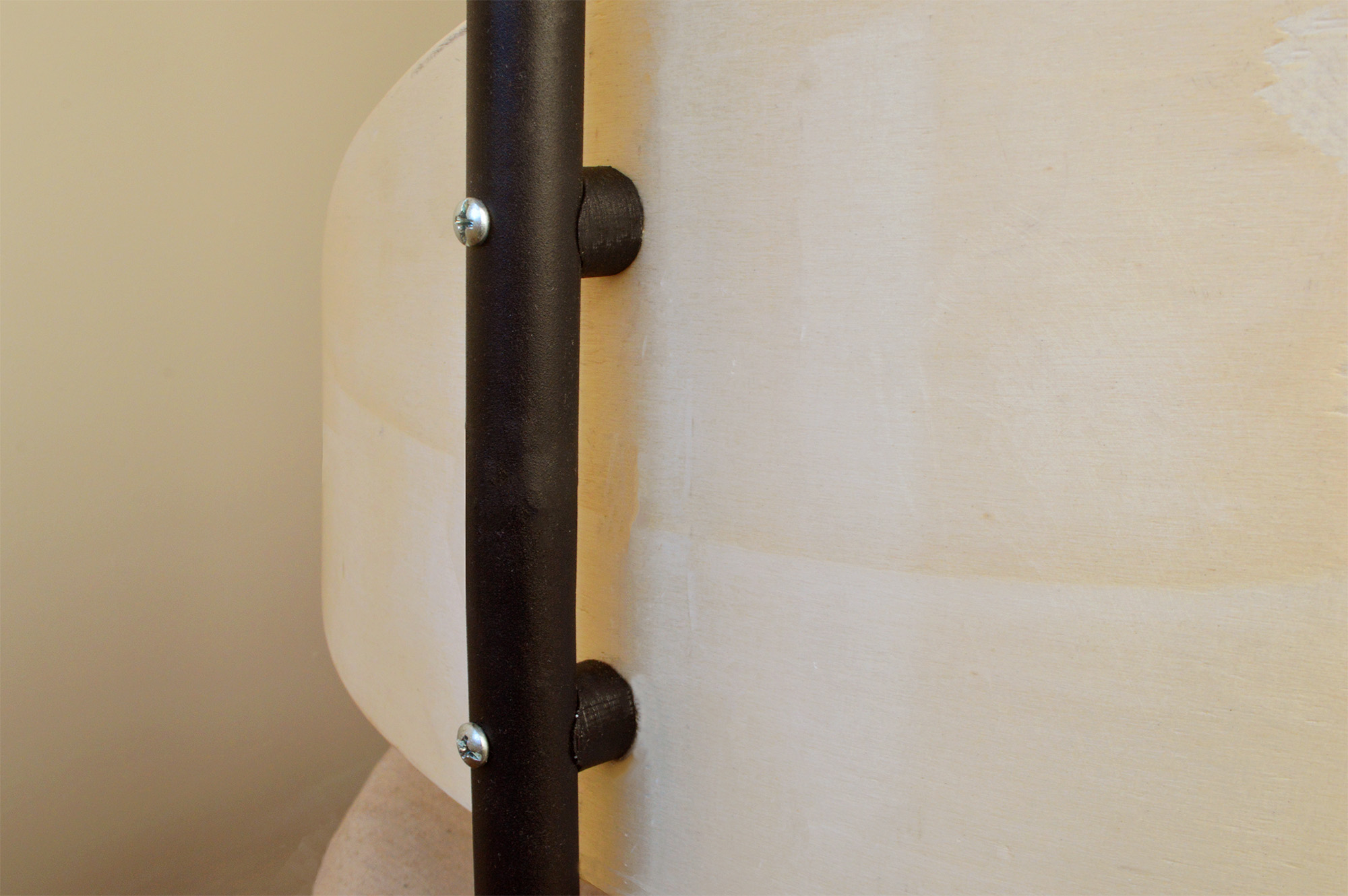

3D printed connectors for the backrest attachment
3D printed connectors for the backrest attachment

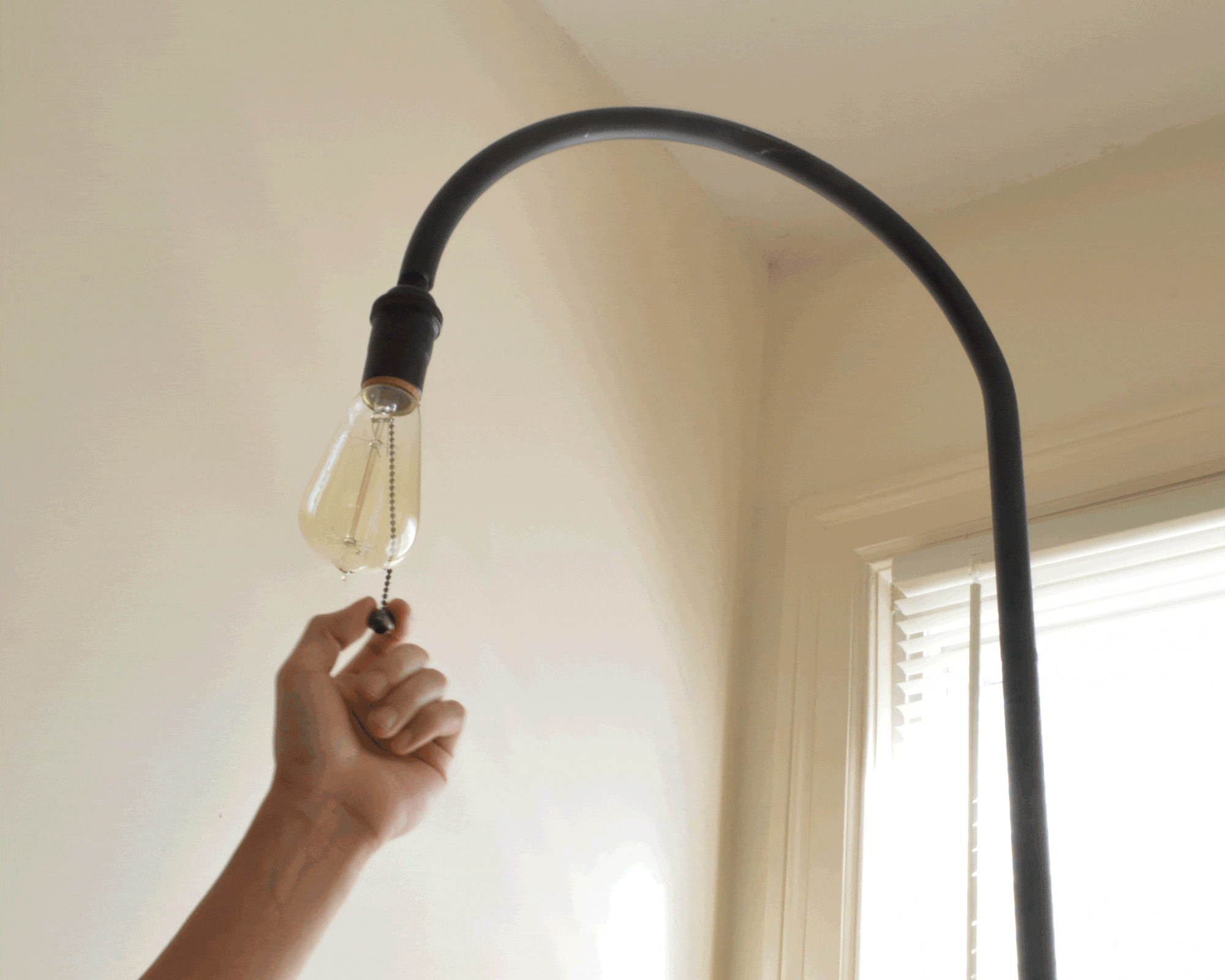

Simple pull string light
Simple pull string light

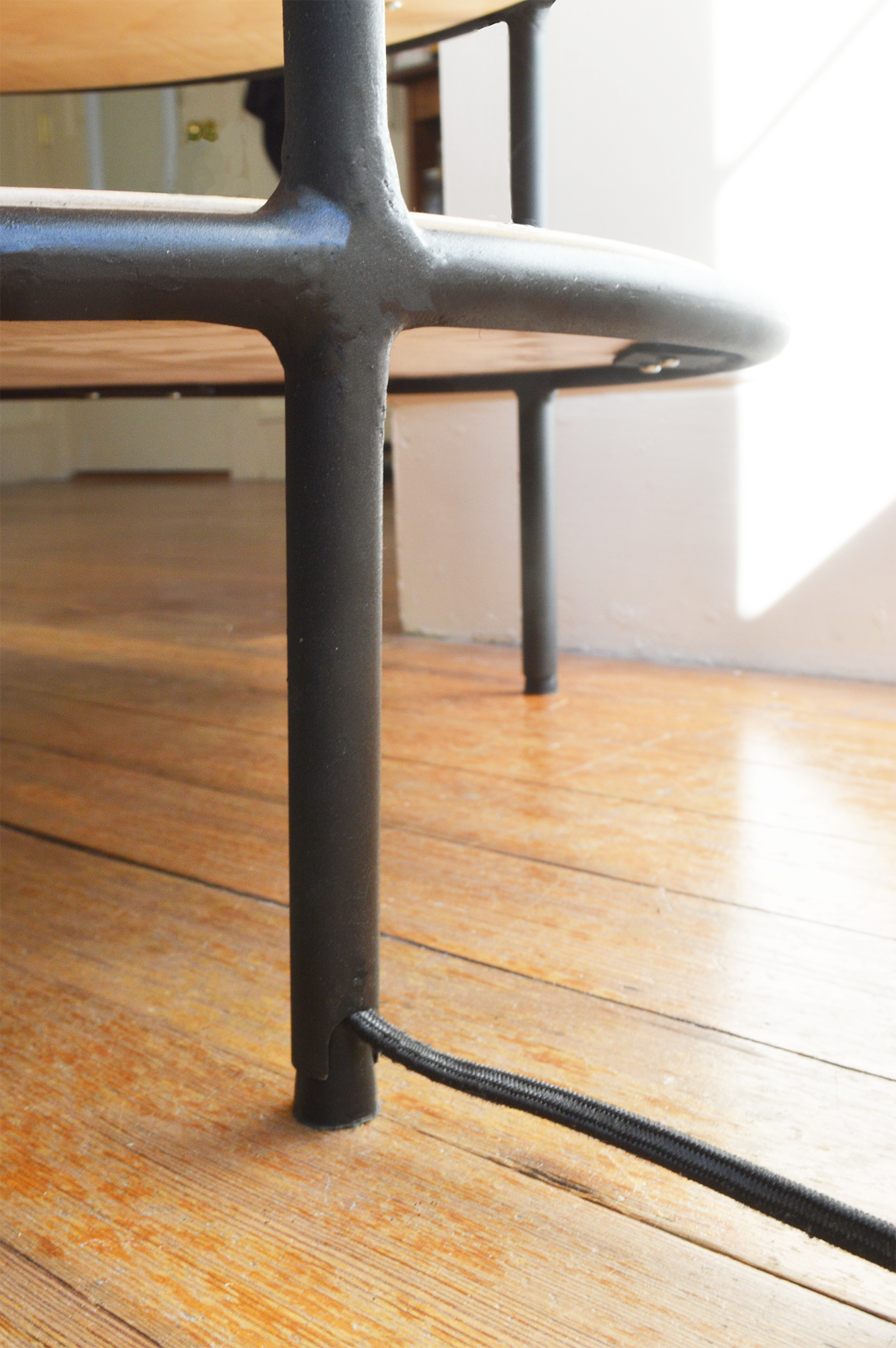

Machined notch in foot for lamp wire
Machined notch in foot for lamp wire

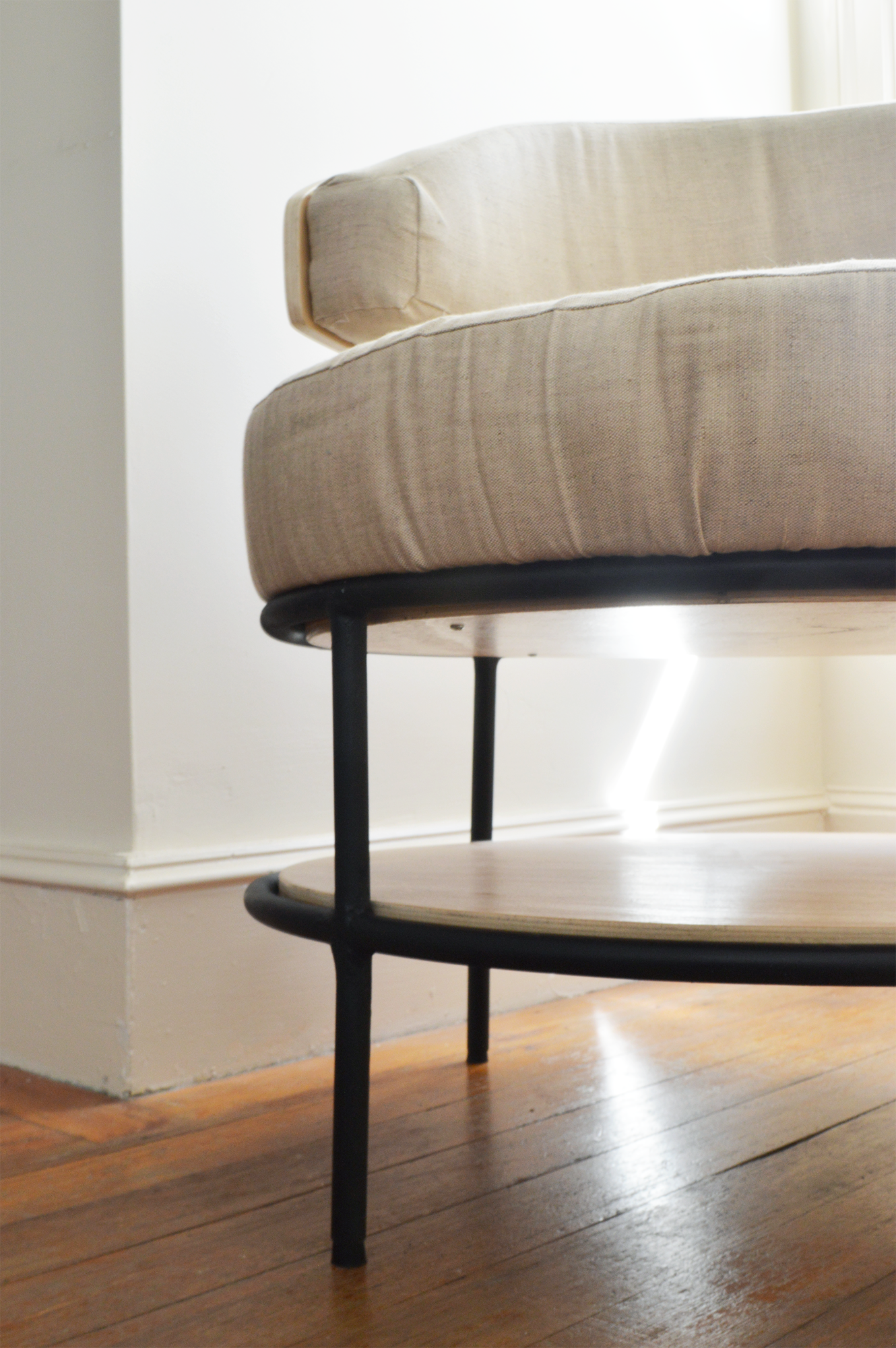

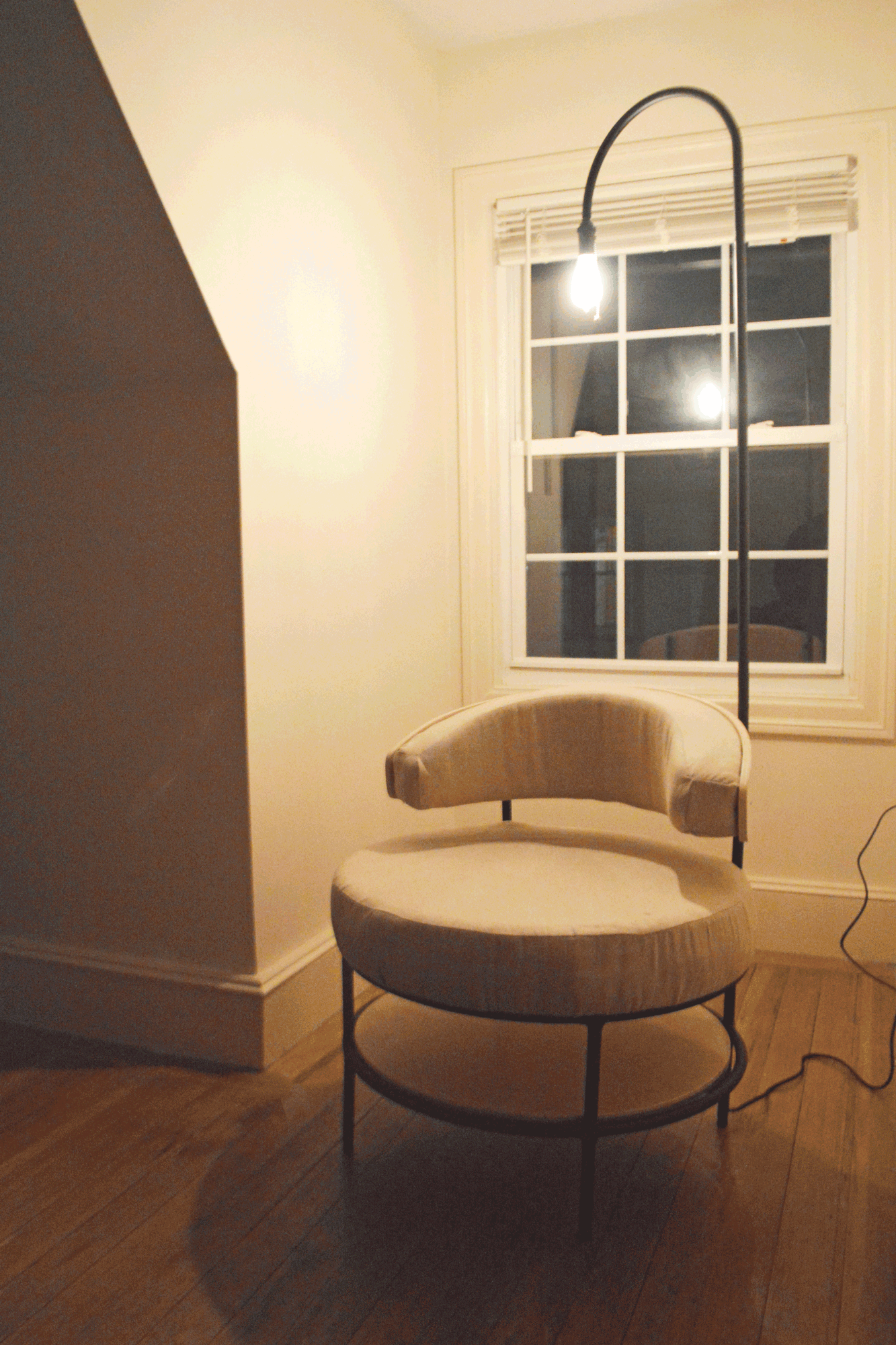

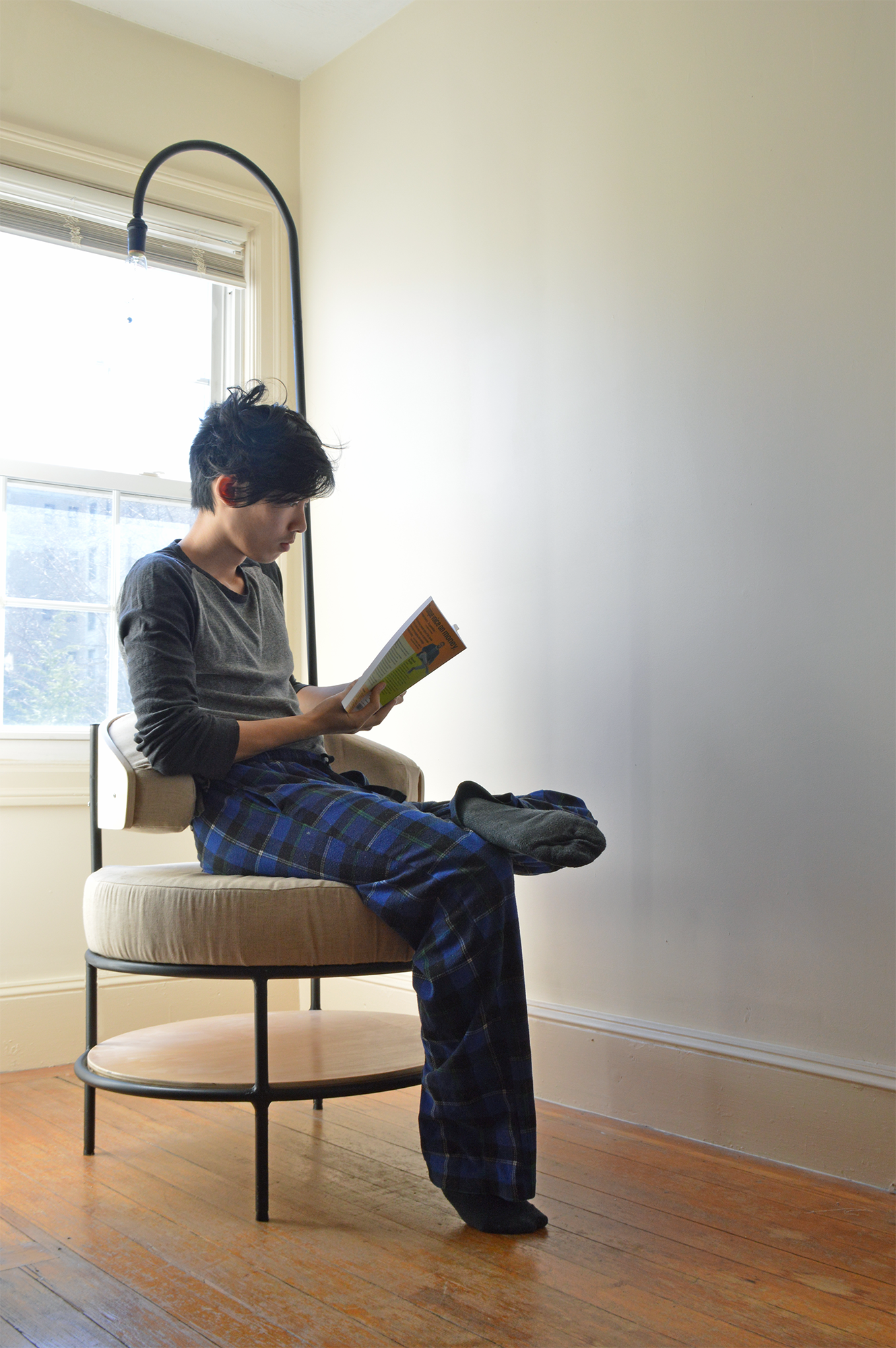

Shelf at the bottom makes it for the perfect reading chair
Shelf at the bottom makes it for the perfect reading chair
Light rotates for more accessibility
Light rotates for more accessibility

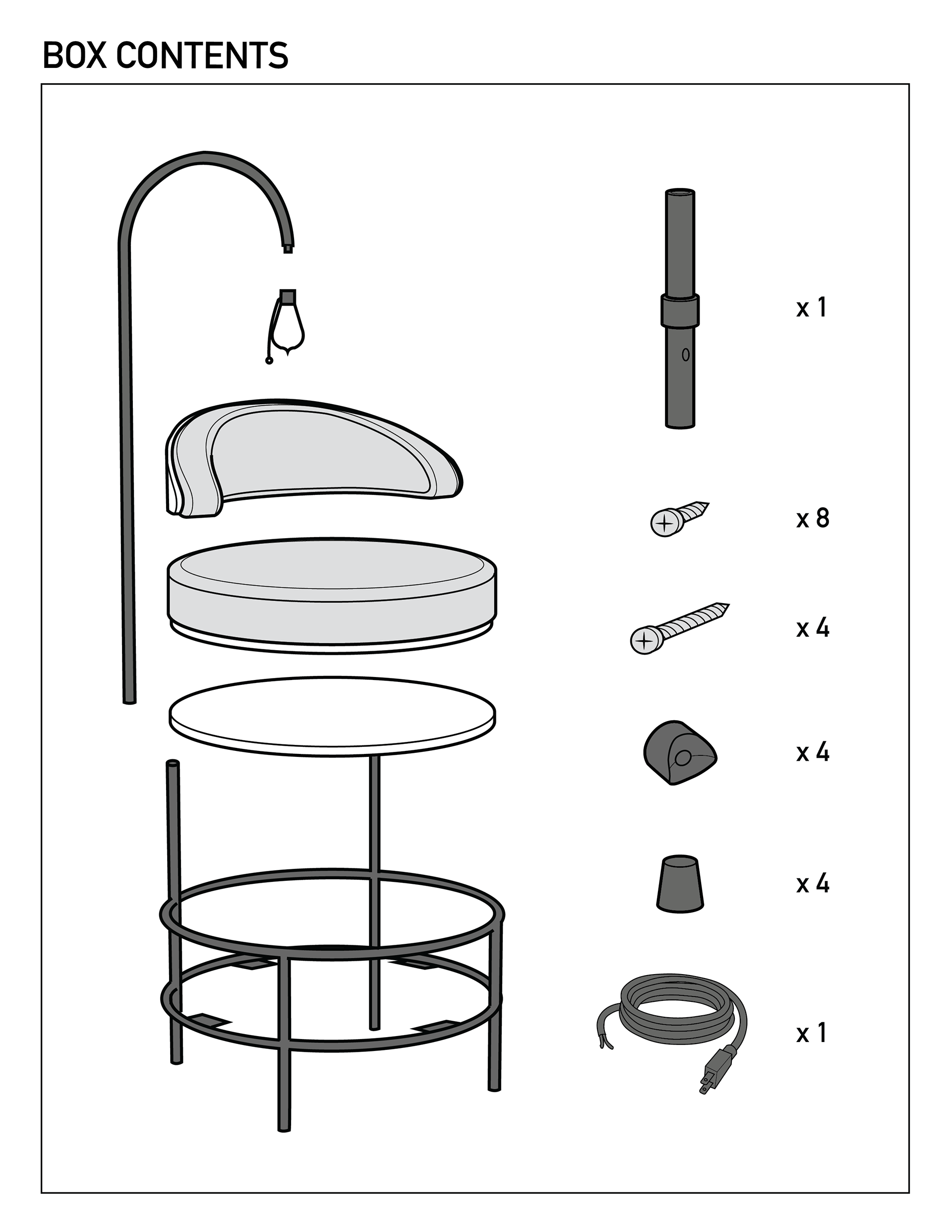

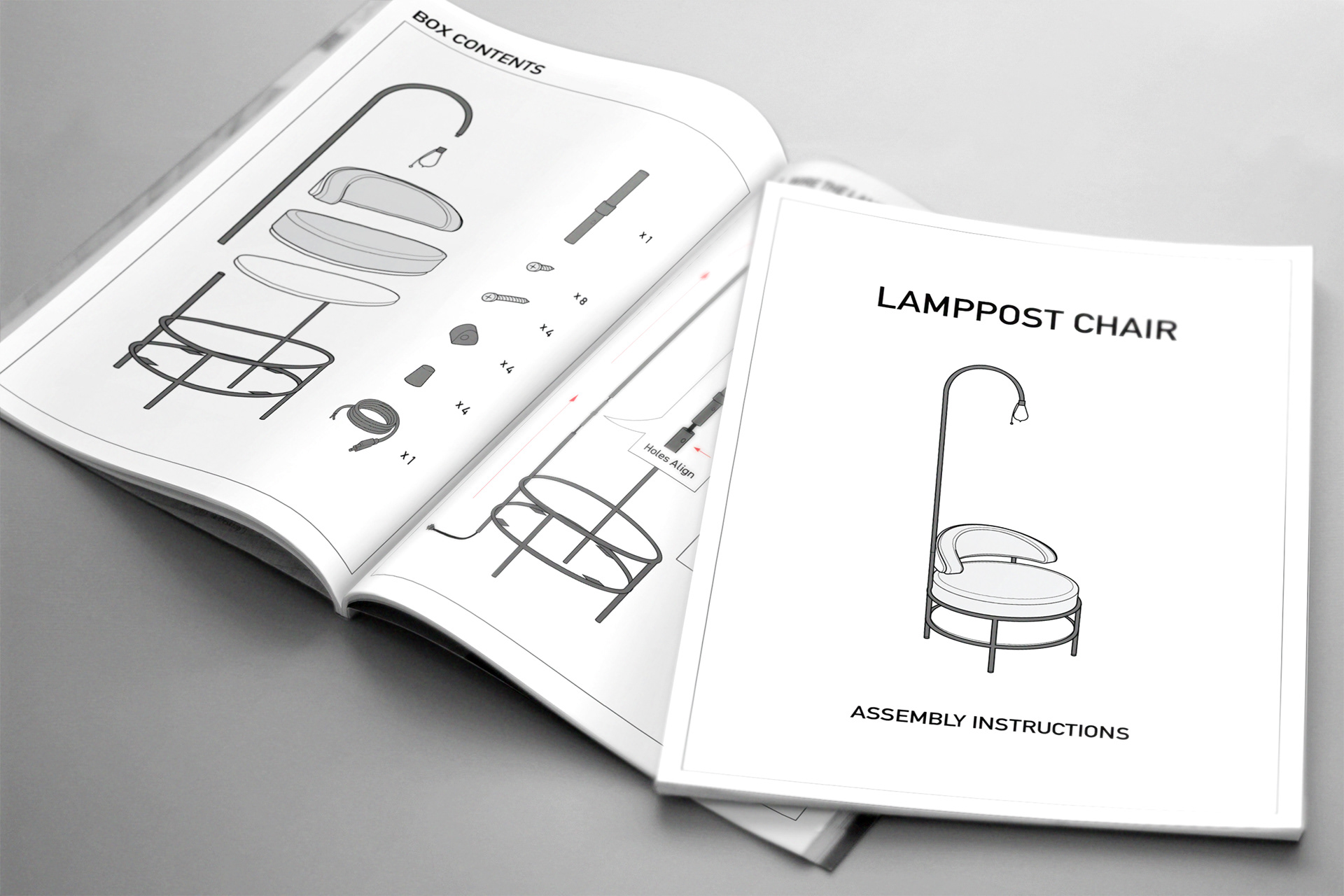

ASSEMBLY INSTRUCTIONS
Parts come pre-made and only a screw driver is needed to for assembly. The user also has the option to assemble the chair with or without the lamppost.

TECHINICAL DRAWINGS

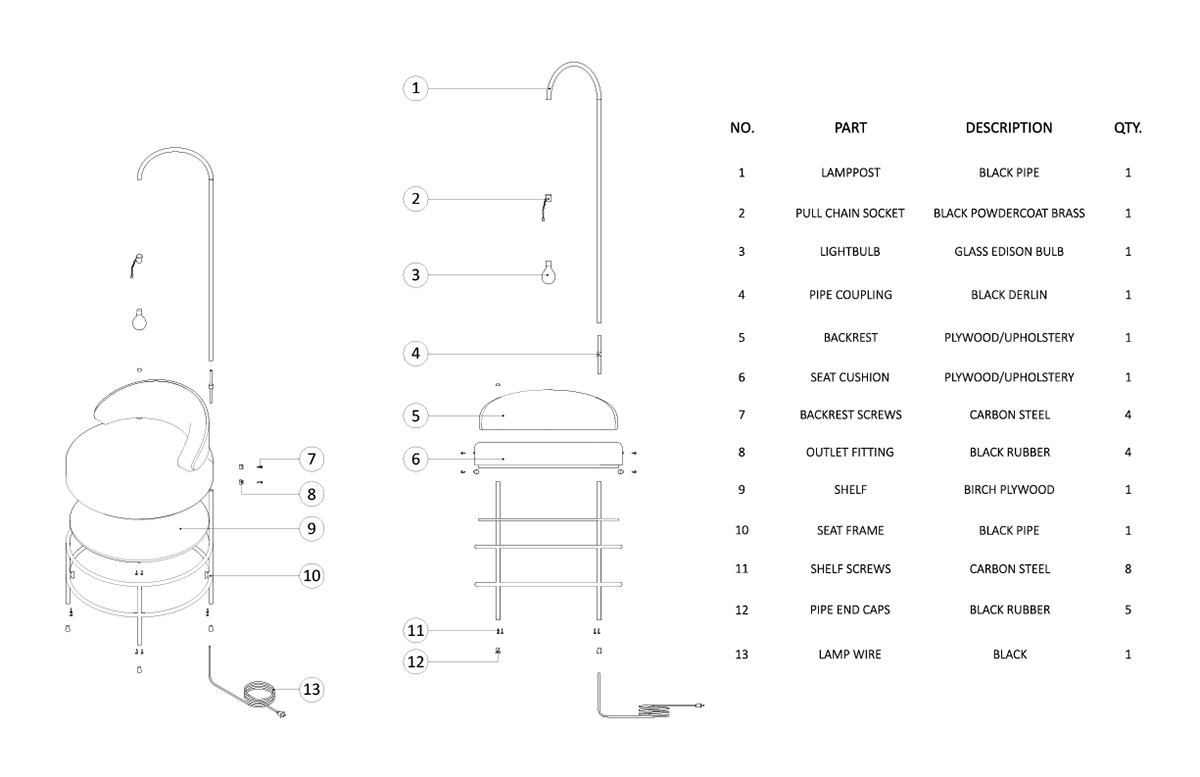

Exploded View
Exploded View

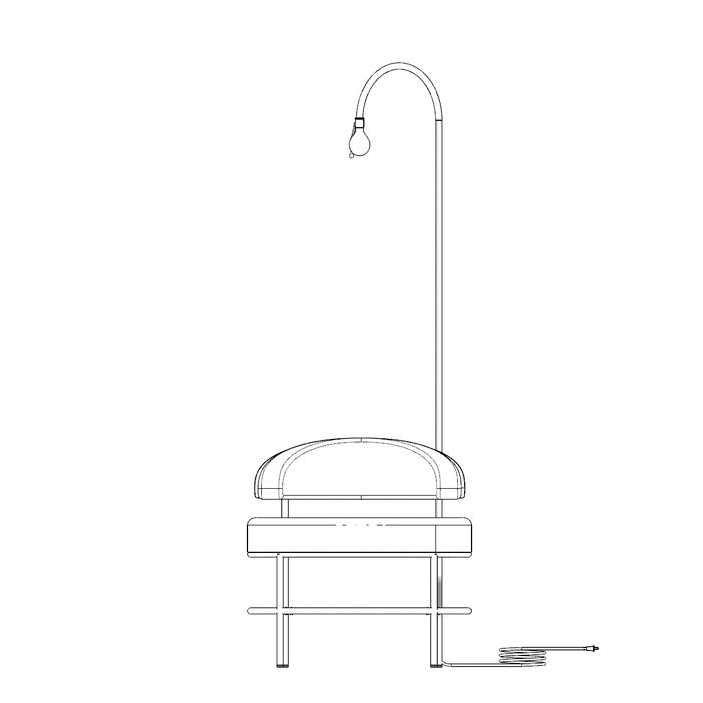

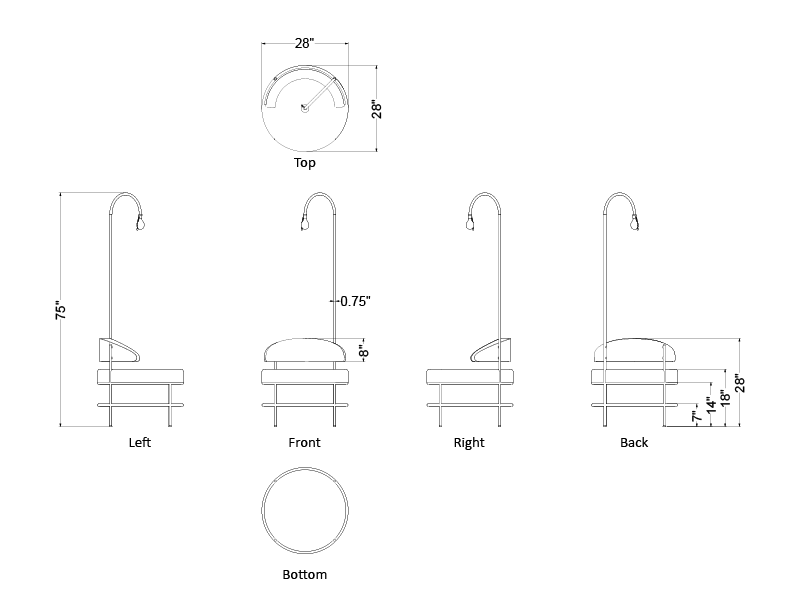

Orthographic View
Orthographic View
PROCESS
Concept development began by finding inspiration and brainstorm sketching with marker on paper. Through discussion and iteration, designs were refined until a final design was chosen. The design was finalized and modeled in Rhinoceros3D. Dimensions were extracted and used for templates for fabrication.
Form was inspired by multi-functional furniture, modern industrial aesthetic, utilitarian function, and DIY design.  Materials and finishes stay true and raw, connections are exposed, construction is clear and honest, and nothing is hidden.

Brainstroming sketches
Brainstroming sketches
Refinement sketches
Refinement sketches

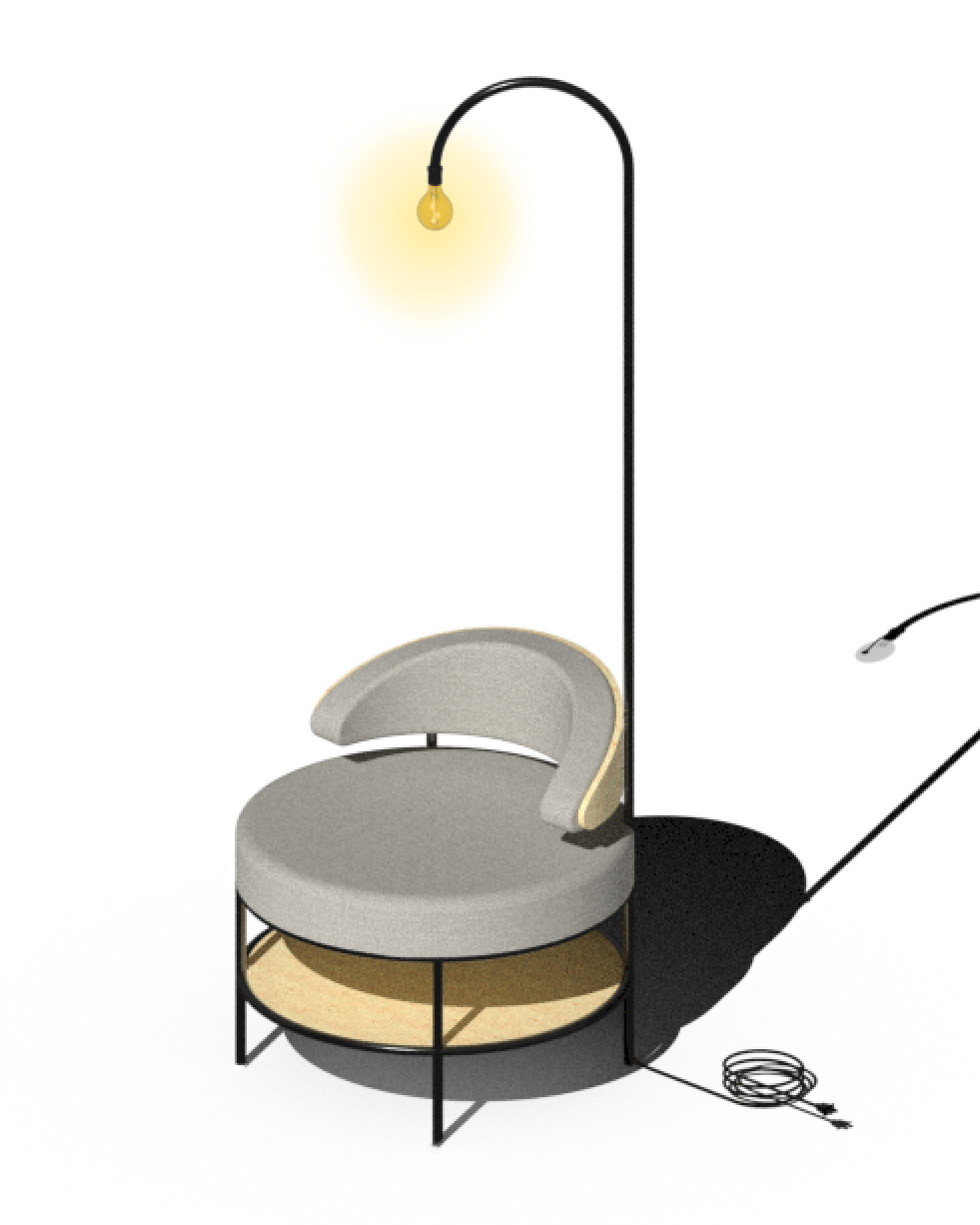

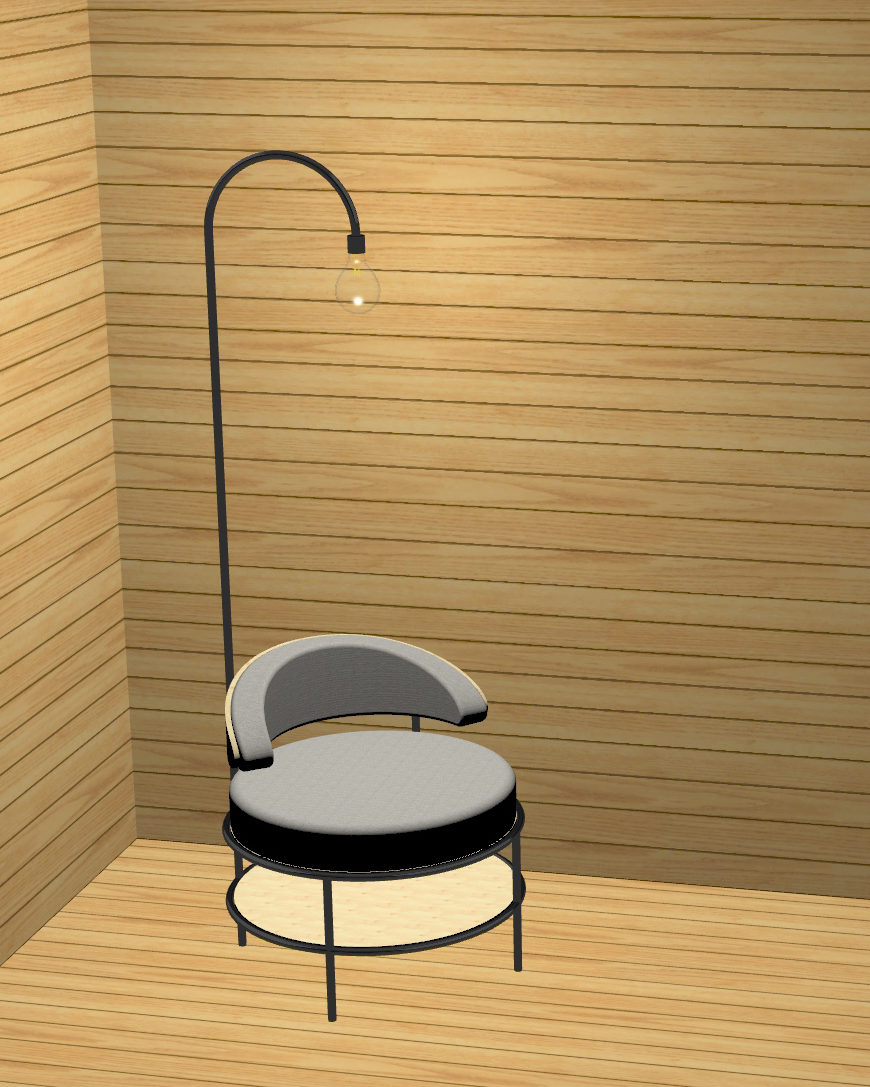

Rendering
Rendering
FABRICATION
The frame is made from cold rolled steel tubing finished with black textured spray paint and the shelf, seat and back rest is made from plywood finished with poly-acrylic for durability. Natural woven fabric, dark finishes for fasteners and an Edison light bulb come together to complete the industrial/DIY aesthetic.

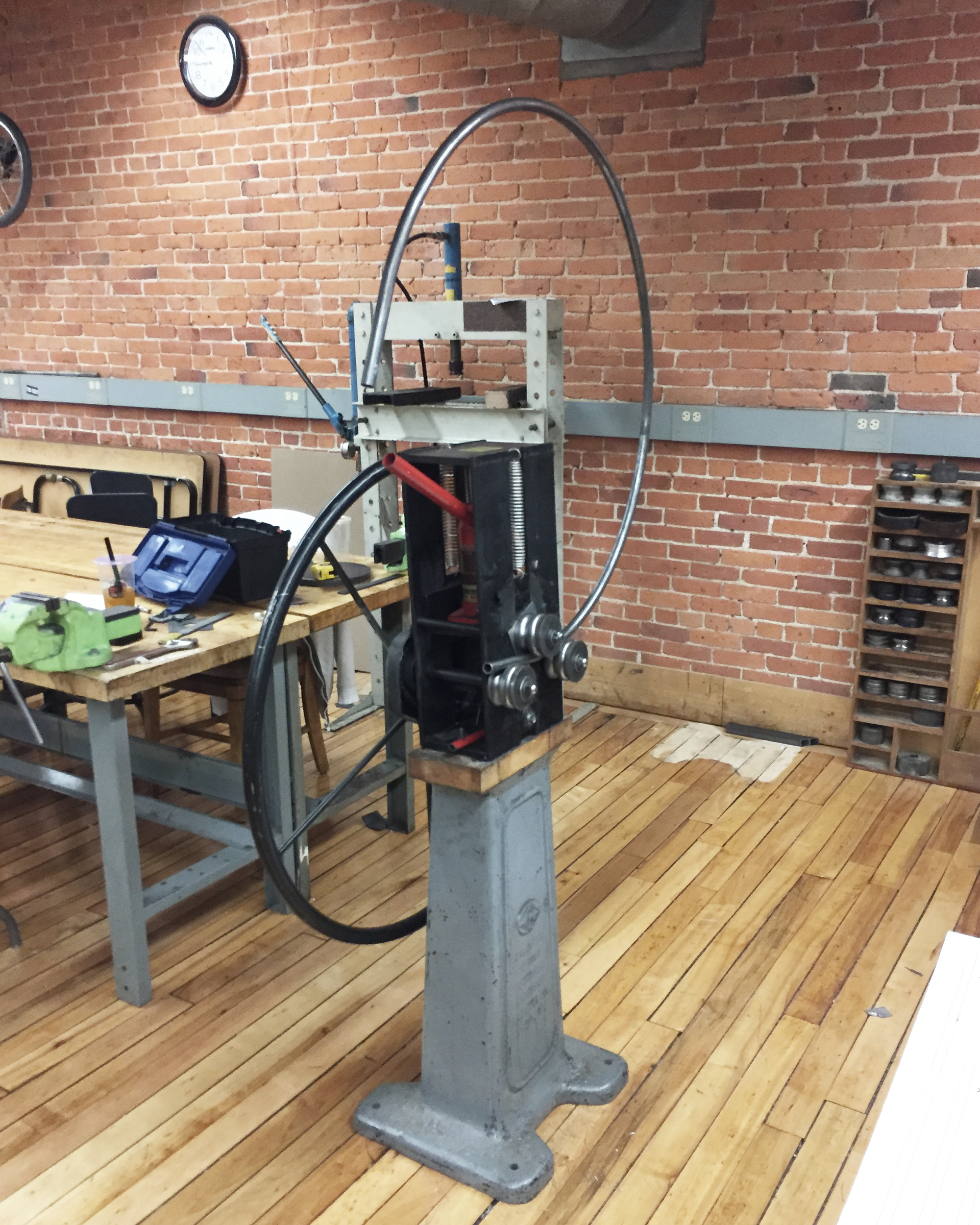

Steel pipe was bent with tube roller
Steel pipe was bent with tube roller

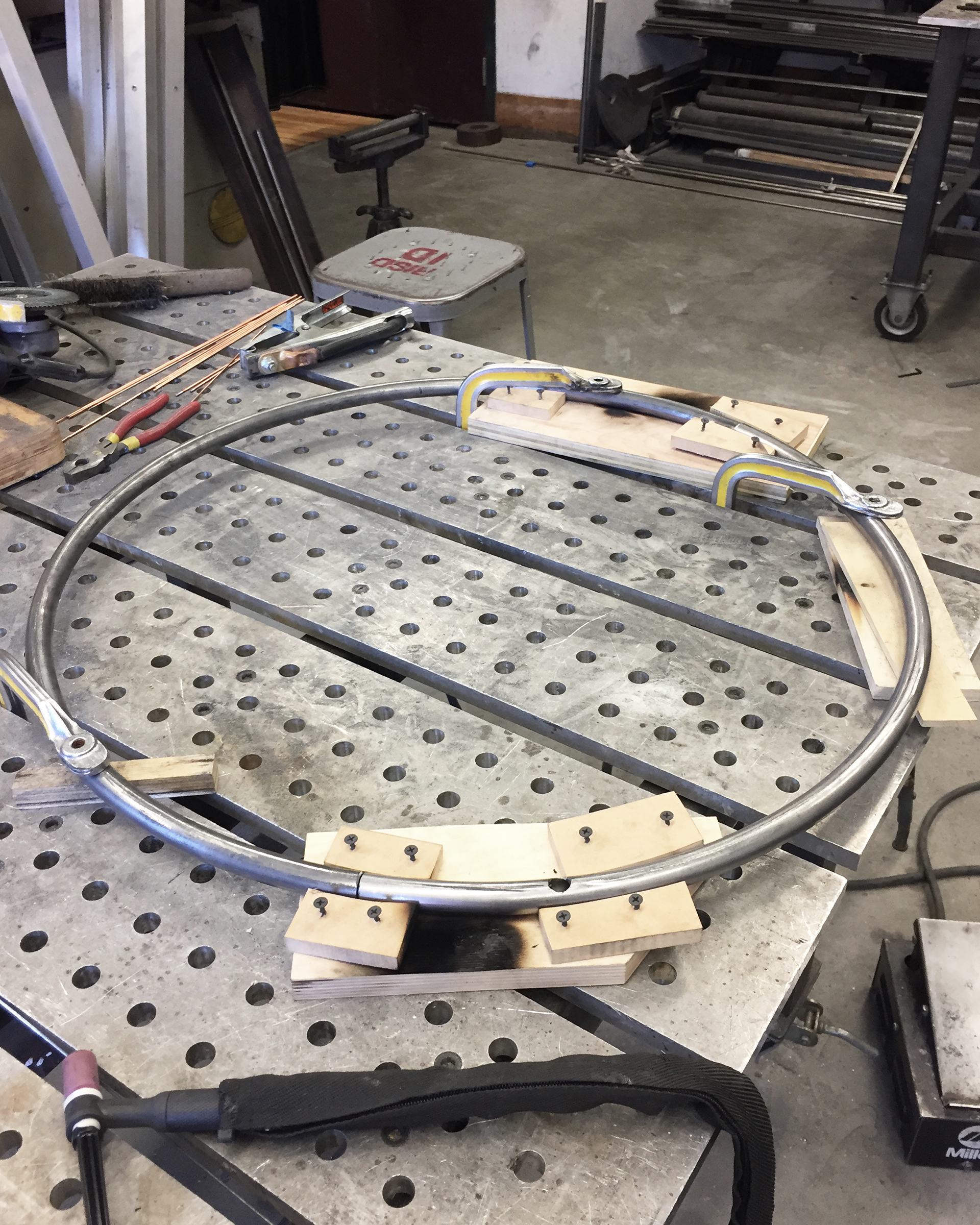

Welded with jigs in place
Welded with jigs in place

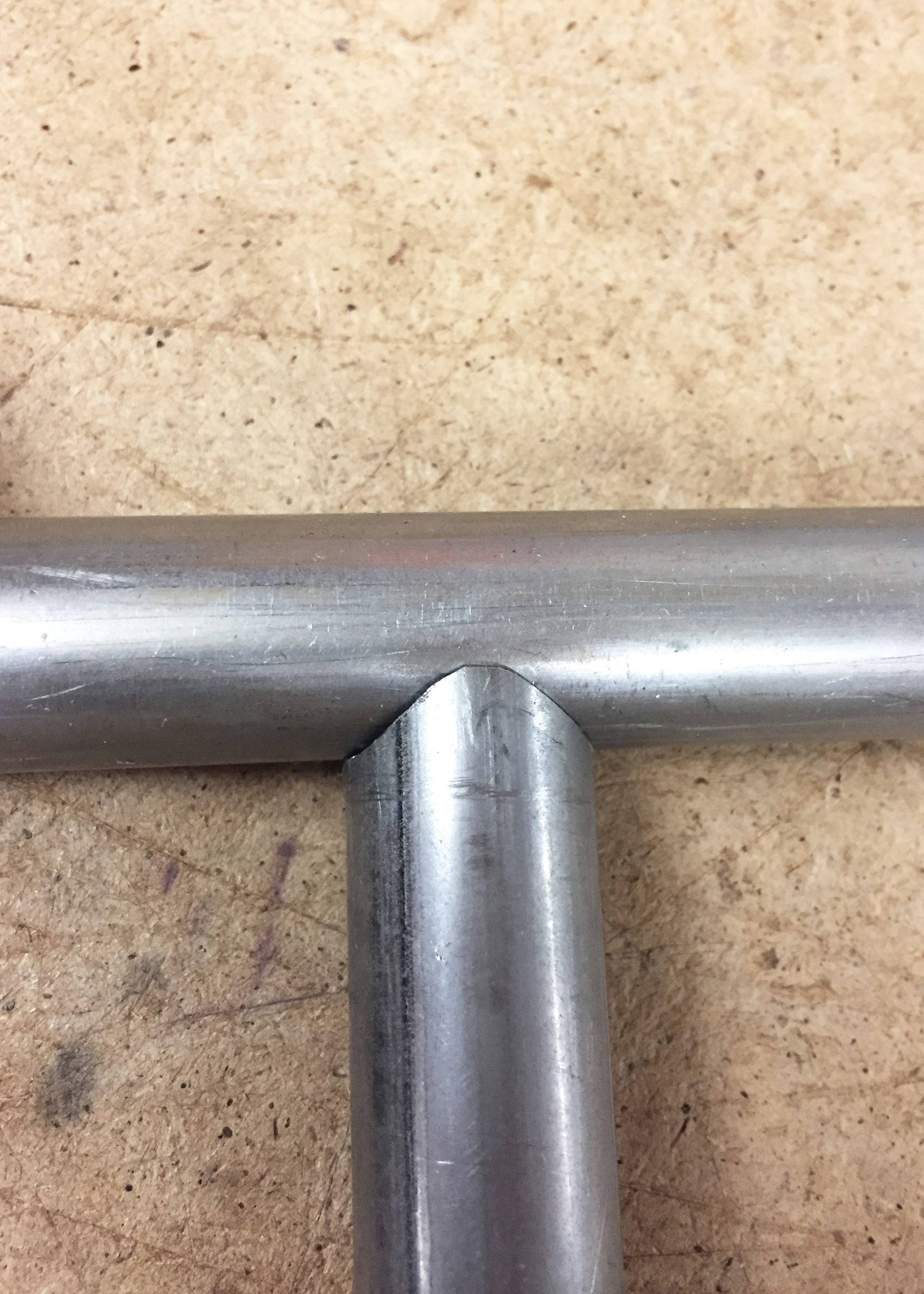

Notches were machined for perfect fit
Notches were machined for perfect fit

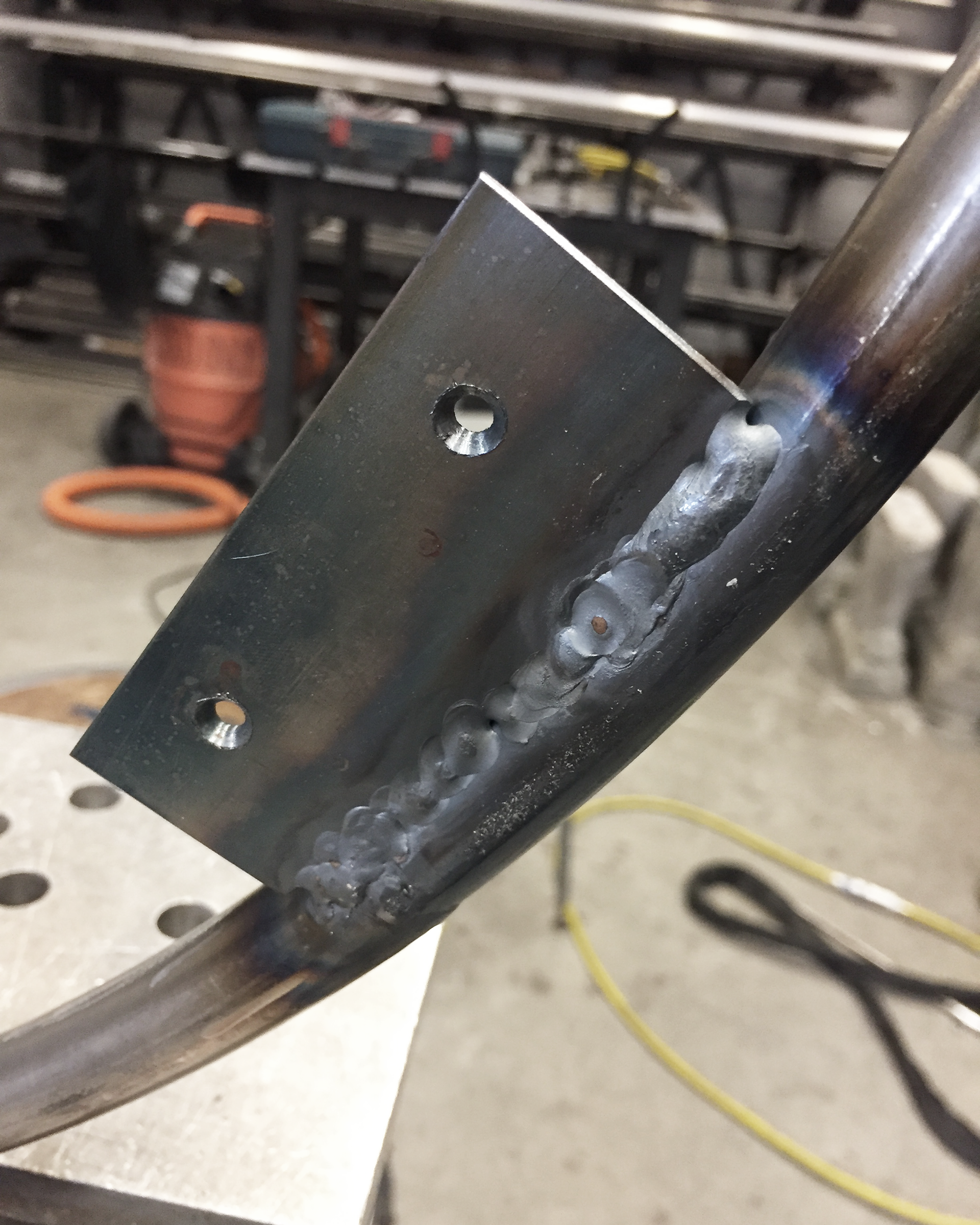

Tabs were welded on for shelf attachment
Tabs were welded on for shelf attachment

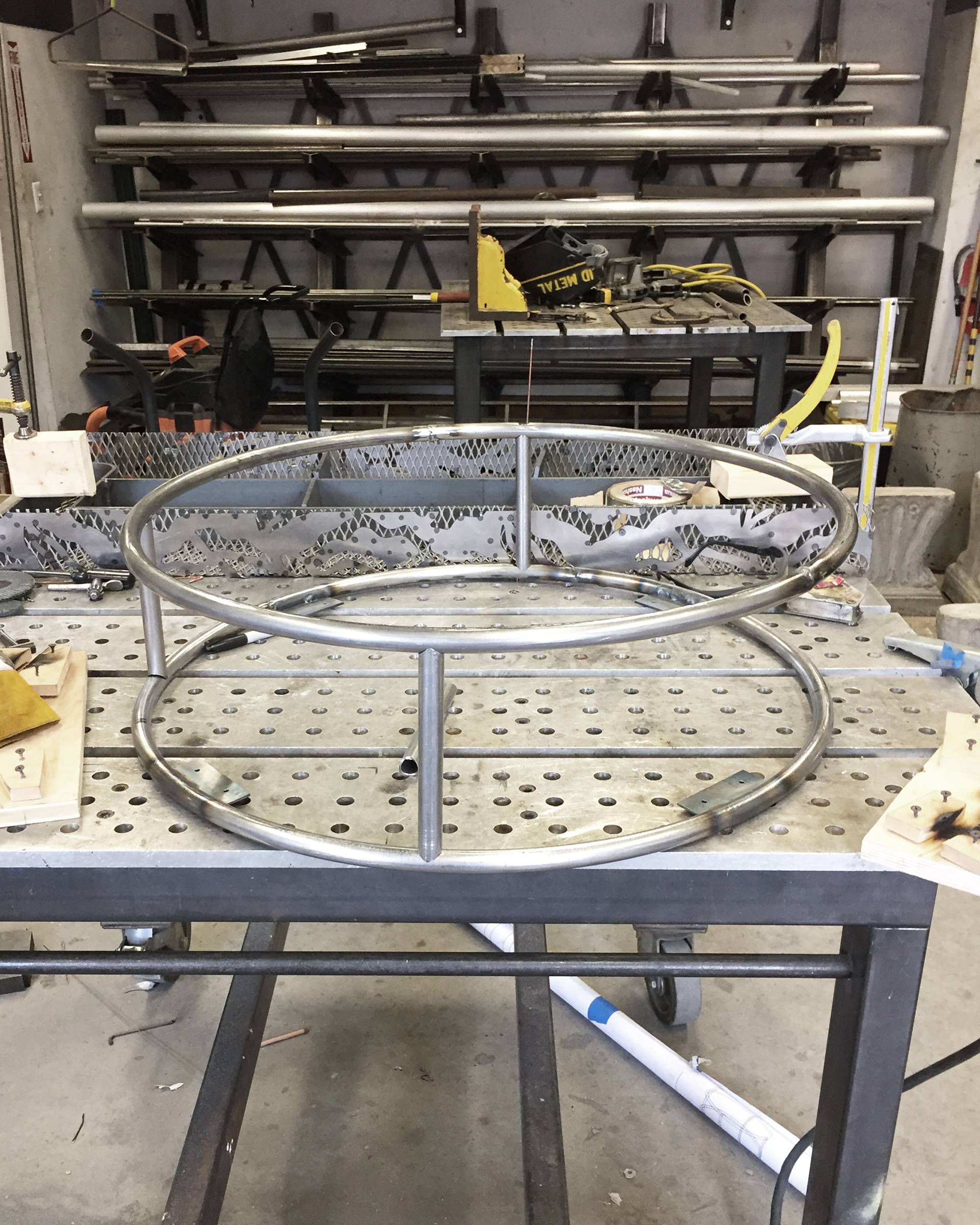

Steel frame ready to weld!
Steel frame ready to weld!

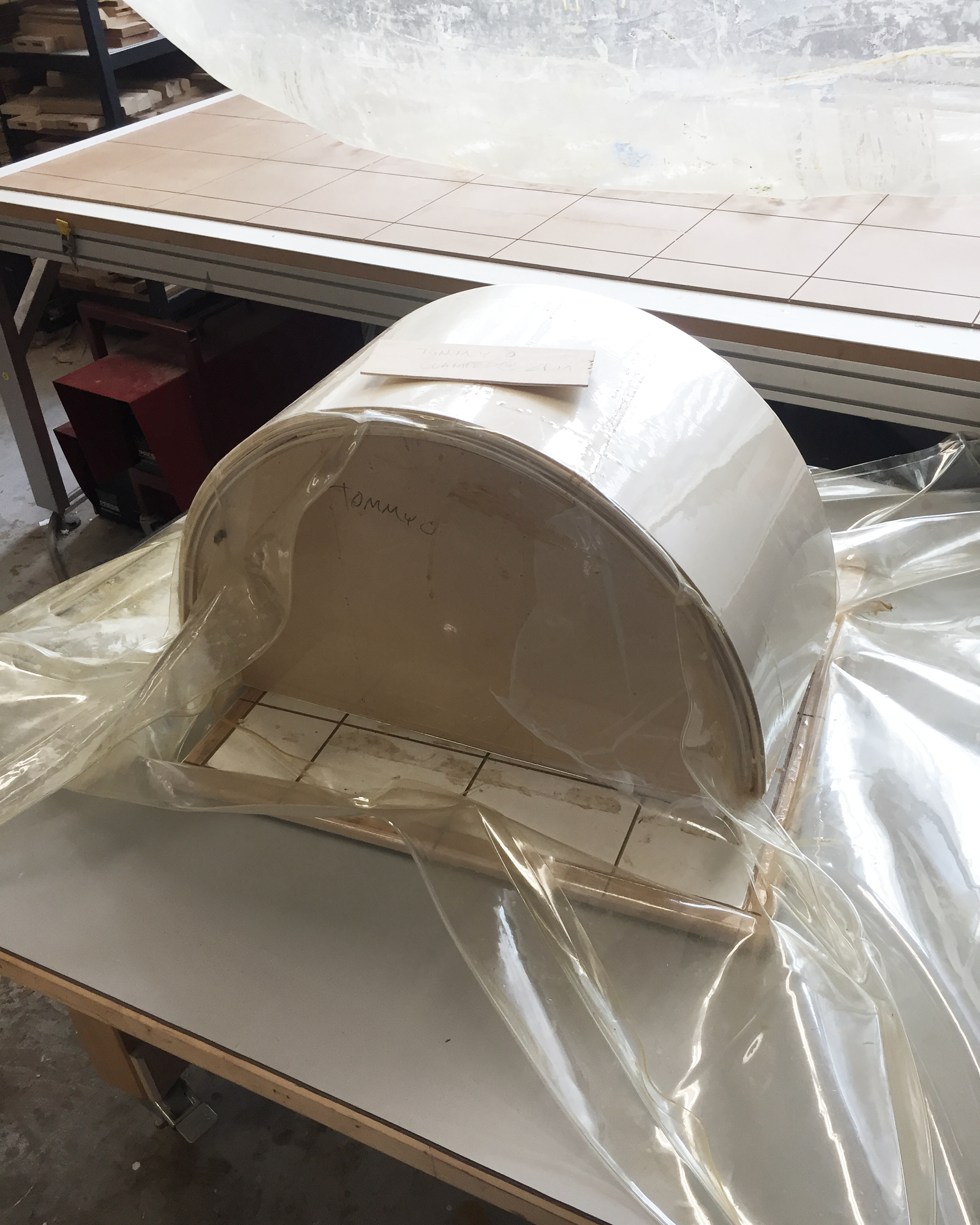

Backrest was vacuum formed with bending ply
Backrest was vacuum formed with bending ply
